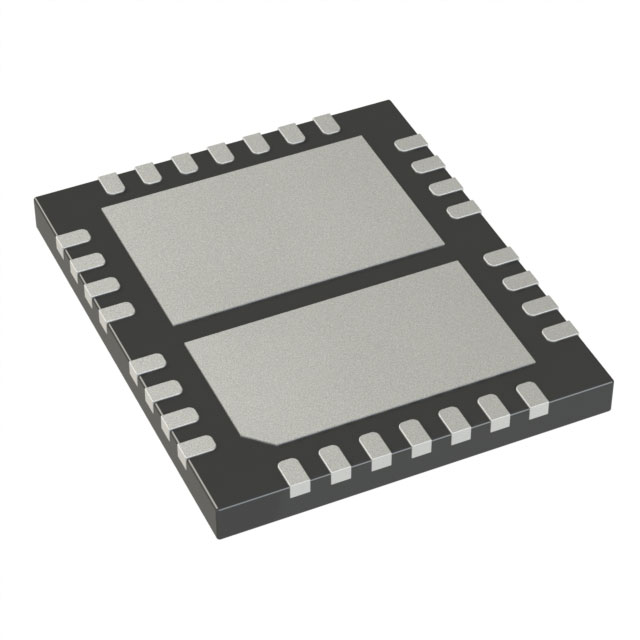

NB648EQJ-LF-P

NB648EQJ-LF-P Description

The NB648EQJ-LF-P is a high-performance, adjustable output buck regulator designed by Monolithic Power Systems Inc., a leading manufacturer in the power management industry. This IC offers a robust solution for a wide range of applications requiring efficient power conversion and management. With an input voltage range of 4.5V to 25V and an adjustable output voltage from 0.8V to 15V, the NB648EQJ-LF-P is highly versatile and can deliver up to 8A of output current. The device features a switching frequency of 580kHz, ensuring high efficiency and minimal footprint on the PCB. The synchronous rectifier design further enhances efficiency, making it an ideal choice for power-sensitive applications.

NB648EQJ-LF-P Features

• Adjustable Output Voltage: The NB648EQJ-LF-P provides an adjustable output voltage ranging from 0.8V to 15V, offering flexibility to meet various power requirements.
• High Current Capability: With a maximum output current of 8A, this regulator is capable of powering demanding applications.
• Wide Input Voltage Range: The input voltage range of 4.5V to 25V ensures compatibility with a variety of power sources.
• Efficient Synchronous Rectification: The inclusion of a synchronous rectifier enhances efficiency, reducing power loss and improving overall performance.
• High Switching Frequency: Operating at a switching frequency of 580kHz, the NB648EQJ-LF-P minimizes the size of external components, resulting in a compact design.
• Positive Output Configuration: The positive output configuration simplifies circuit design and integration.
• Compliance and Reliability: The NB648EQJ-LF-P is REACH unaffected and RoHS3 compliant, ensuring environmental sustainability and reliability.
• Moisture Sensitivity Level: With an MSL rating of 2 (1 Year), the device is suitable for various manufacturing environments.
• Packaging: Available in a Tape & Reel (TR) package, the NB648EQJ-LF-P is ideal for surface mount applications, facilitating automated assembly processes.

NB648EQJ-LF-P Applications

The NB648EQJ-LF-P is well-suited for a variety of applications where efficient power conversion and management are critical. Key applications include:

• Telecommunications: Powering base stations, routers, and switches.
• Computing: Providing stable power to servers, desktops, and notebooks.
• Consumer Electronics: Used in high-end gaming consoles, smart TVs, and other consumer devices.
• Industrial Equipment: Powering motor drives, PLCs, and other industrial control systems.
• Automotive: Suitable for in-vehicle infotainment systems and advanced driver assistance systems (ADAS).

Conclusion of NB468EQJ-LF-P

The NB648EQJ-LF-P stands out as a superior choice in the power management IC market due to its combination of high efficiency, adjustable output voltage, and robust performance. Its wide input voltage range and high current capability make it versatile for a broad spectrum of applications. The inclusion of synchronous rectification and a high switching frequency ensures minimal power loss and a compact design, making it an ideal solution for space-constrained applications. With its compliance to environmental standards and reliable packaging, the NB648EQJ-LF-P is a reliable and efficient power management solution for modern electronic systems.
