B1505S-2WR3

B1505S-2WR3 Description

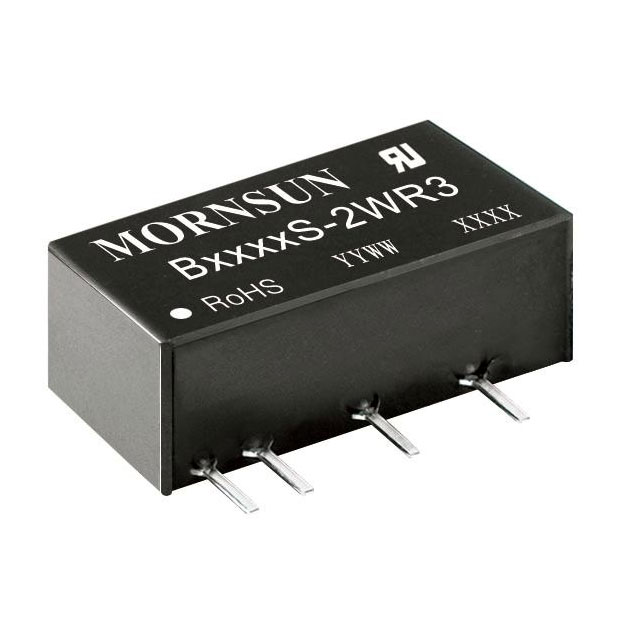

The B1505S-2WR3 is a high-performance DC-DC converter designed and manufactured by Mornsun America, LLC. This isolated module features a compact size of 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm) and offers a power output of 2W with a single output of 5V. The input voltage range is between 13.5V and 16.5V, making it suitable for a wide range of applications. The B1505S-2WR3 boasts an efficiency of 80% and offers 1.5 kV of voltage isolation for enhanced safety and reliability.

B1505S-2WR3 Features

• Technical Specifications:

  • Input Voltage Range: 13.5V to 16.5V
  • Output Voltage: 5V
  • Output Current: Up to 400mA
  • Power Output: 2W
  • Voltage Isolation: 1.5 kV
  • Efficiency: 80%
  • Mounting Type: Through Hole
  • Size/Dimension: 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm)
  • Number of Outputs: 1
  • Package: Tube

• Regulatory Compliance:

  • RoHS Status: ROHS3 Compliant
  • REACH Status: REACH Unaffected
  • Approval Agency: CB, CE, cURus, UL
  • ECCN: EAR99
  • HTSUS: 8504.40.9580

• Unique Features and Advantages:

  • Compact size and through-hole mounting make it ideal for space-constrained applications.
  • 1.5 kV isolation ensures safety and reliability in demanding environments.
  • 80% efficiency reduces power loss and improves overall system performance.
  • RoHS3 and REACH compliance ensures environmental friendliness and regulatory adherence.

B1505S-2WR3 Applications

The B1505S-2WR3 is ideal for a variety of applications in the ITE (Commercial) sector, including:

• Industrial Automation: Powering control systems and sensors in industrial settings.
• Telecommunications: Providing stable power to communication equipment and accessories.
• Medical Devices: Ensuring reliable power to medical instruments and diagnostic tools.
• Consumer Electronics: Powering small electronic devices and gadgets with low power requirements.

Conclusion of B1505S-2WR3

The B1505S-2WR3 from Mornsun America, LLC, is a versatile and reliable DC-DC converter that offers a compact design, high efficiency, and robust isolation. Its unique features and regulatory compliance make it an ideal choice for a wide range of applications in the ITE sector. With its 2W output and 5V single output, the B1505S-2WR3 is a powerful solution for powering small electronic devices and systems in demanding environments.
