E0305S-1WR3

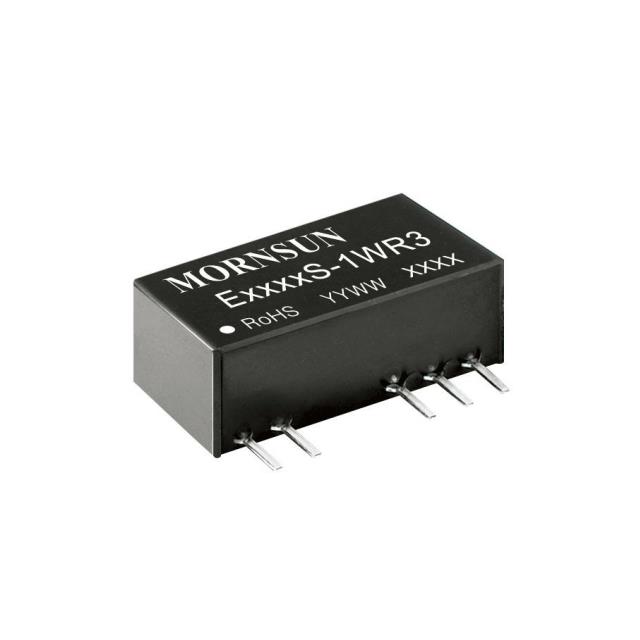

E0305S-1WR3 Description

The E0305S-1WR3 is a high-performance, isolated DC-DC converter module designed and manufactured by Mornsun America, LLC. This compact and reliable device is part of the External/Internal DC-DC Converters category and offers a wide range of technical specifications and performance benefits. With its active product status and REACH unaffected status, the E0305S-1WR3 is compliant with RoHS3 and EAR99 regulations, making it an environmentally friendly and export-friendly solution for various applications.

E0305S-1WR3 Features

• Voltage Input Range: The E0305S-1WR3 operates with an input voltage range of 2.97V to 3.63V, ensuring compatibility with a wide range of power sources.
• Output Voltage: This converter module provides two output voltages, with the primary output being 5V and an additional -5V output for versatile power requirements.
• Current Output: The E0305S-1WR3 can deliver up to 100mA on each output, making it suitable for low-power applications.
• Efficiency: With an efficiency of 82%, this converter module offers energy-saving performance while maintaining high output power.
• Isolation Voltage: The E0305S-1WR3 features a 3 kV isolation voltage, providing reliable electrical isolation between input and output.
• Mounting Type: The module is designed for through-hole mounting, ensuring easy integration into various electronic systems.
• Size/Dimension: Measuring 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm), the E0305S-1WR3 is compact and space-saving.
• Moisture Sensitivity Level (MSL): Not applicable, indicating that the module is suitable for use in various environments without concerns about moisture sensitivity.

E0305S-1WR3 Applications

The E0305S-1WR3 is ideal for a wide range of applications, particularly in the ITE (Commercial) sector. Some specific use cases include:

1. Industrial Control Systems: The E0305S-1WR3 can be used to provide isolated power to various control systems, ensuring reliable operation and protection against electrical noise.
2. Telecommunications Equipment: This converter module can be used to power communication devices, such as routers and switches, with isolated power supplies for enhanced reliability and performance.
3. Medical Devices: The E0305S-1WR3 can be integrated into medical devices that require isolated power supplies for safety and performance.
4. Automotive Applications: This converter module can be used in automotive electronics, such as infotainment systems and control units, to provide isolated power supplies for improved reliability and performance.

Conclusion of E0305S-1WR3

The E0305S-1WR3 is a versatile and reliable DC-DC converter module that offers a range of technical specifications and performance benefits. Its compact size, high efficiency, and isolation voltage make it an ideal solution for various applications in the ITE (Commercial) sector. With its RoHS3 compliance and REACH unaffected status, the E0305S-1WR3 is an environmentally friendly choice for low-power applications.
