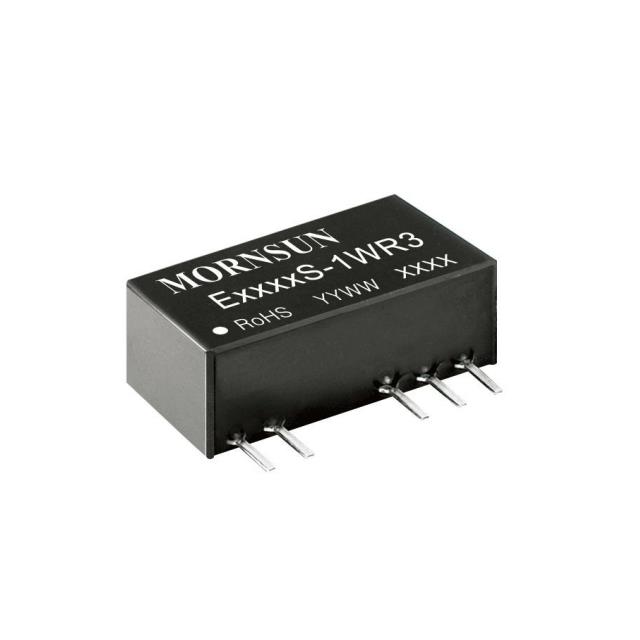

E0309S-1WR3

E0309S-1WR3 Description

The E0309S-1WR3 is a high-performance, isolated DC-DC converter module designed and manufactured by Mornsun America, LLC. This versatile device is part of the External/Internal DC-DC Converters category and offers a range of technical specifications that make it an ideal choice for various applications. With an input voltage range of 2.97V to 3.63V and an output voltage of 9V, the E0309S-1WR3 is capable of delivering up to 56mA on each output, making it suitable for low-power applications.

E0309S-1WR3 Features

• Voltage - Input (Max): 3.63V
• Voltage - Input (Min): 2.97V
• Voltage - Output 1: 9V
• Current - Output (Max): 56mA on each output
• Efficiency: 85%
• Voltage - Isolation: 3 kV
• Mounting Type: Through Hole
• Size / Dimension: 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm)
• Number of Outputs: 2
• Power (Watts): 1 W
• Type: Isolated Module
• RoHS Status: ROHS3 Compliant
• REACH Status: REACH Unaffected
• Moisture Sensitivity Level (MSL): Not Applicable
• ECCN: EAR99
• HTSUS: 8504.40.9580
• Package: Tube

The E0309S-1WR3 stands out due to its high efficiency of 85%, which ensures minimal power loss and optimal performance. The 3 kV isolation provides a high level of safety and reliability, making it suitable for applications where electrical isolation is crucial. The device's compact size and through-hole mounting type make it easy to integrate into various designs.

E0309S-1WR3 Applications

The E0309S-1WR3 is ideal for use in ITE (Commercial) applications, where low power and high reliability are required. Some specific use cases include:

1. Industrial Control Systems: The E0309S-1WR3 can be used to provide isolated power to various control modules in industrial settings, ensuring safety and reliability.
2. Telecommunications Equipment: In telecommunications, the device can be used to power low-power circuits, such as signal conditioning or processing units.
3. Medical Devices: The E0309S-1WR3 can be used in medical devices where low power and high reliability are essential, such as in diagnostic equipment or monitoring systems.

Conclusion of E0309S-1WR3

The E0309S-1WR3 is a versatile and reliable DC-DC converter module that offers a range of technical specifications and performance benefits. Its high efficiency, isolation, and compact size make it an ideal choice for various low-power applications in the ITE (Commercial) sector. With its RoHS3 compliance and REACH unaffected status, the E0309S-1WR3 is also environmentally friendly, making it a responsible choice for manufacturers looking to meet regulatory requirements. Overall, the E0309S-1WR3 is a valuable addition to any design that requires a reliable and efficient power solution.
