F0503XT-1WR3-TR

F0503XT-1WR3-TR Description

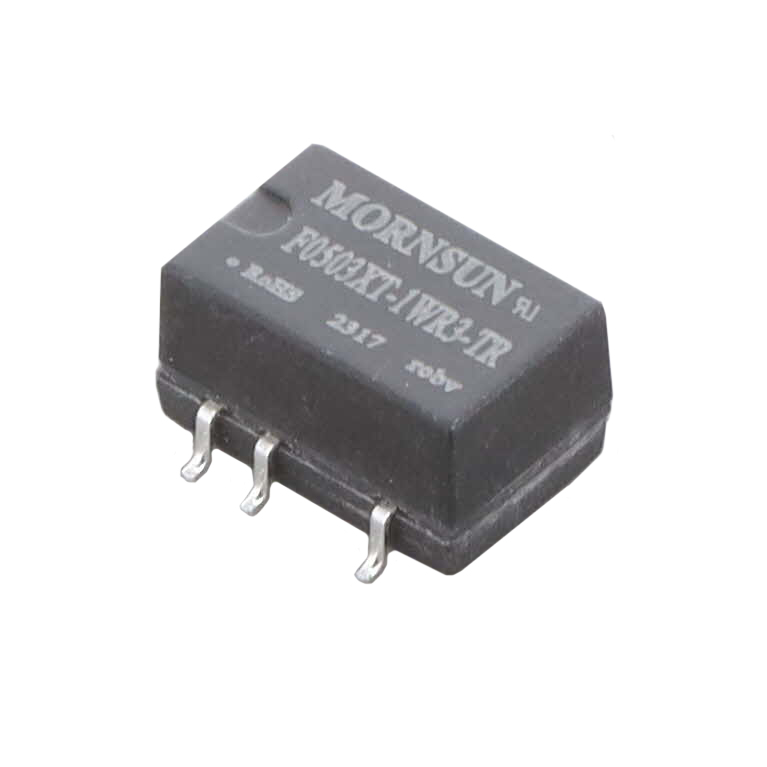

The F0503XT-1WR3-TR is a high-performance, isolated module DC-DC converter designed and manufactured by Mornsun America, LLC. This compact and reliable converter offers a power output of 1W and is capable of delivering a maximum output voltage of 3.3V. With a voltage isolation of 3 kV, it ensures safe and efficient power transfer in various applications. The converter is designed to operate with an input voltage range of 4.5V to 5.5V, making it suitable for a wide range of power sources. The F0503XT-1WR3-TR boasts an impressive efficiency of 74%, ensuring minimal power loss and optimal performance. It is RoHS compliant and REACH unaffected, making it an environmentally friendly choice for electronic devices.

F0503XT-1WR3-TR Features

• Voltage - Input (Max): 5.5V
• Voltage - Input (Min): 4.5V
• Voltage - Output 1: 3.3V
• Current - Output (Max): 303mA
• Efficiency: 74%
• Voltage - Isolation: 3 kV
• Moisture Sensitivity Level (MSL): 1 (Unlimited)
• Mounting Type: Surface Mount
• Size / Dimension: 0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm)
• Number of Outputs: 1
• Type: Isolated Module
• Package: Tape & Reel (TR)
• Approval Agency: CB, CE, cURus, UL
• ECCN: EAR99
• HTSUS: 8504.40.9580
• RoHS Status: RoHS Compliant
• REACH Status: REACH Unaffected

The F0503XT-1WR3-TR stands out from similar models due to its high efficiency, compact size, and robust isolation capabilities. Its surface-mount design allows for easy integration into various electronic systems, while the tape and reel packaging ensures convenience during manufacturing processes.

F0503XT-1WR3-TR Applications

The F0503XT-1WR3-TR is ideal for a wide range of applications, particularly in the ITE (Commercial) sector. Some specific use cases include:

1. Industrial Control Systems: The converter's high isolation and efficiency make it suitable for powering control systems in industrial environments.
2. Telecommunications Equipment: Its compact size and reliable performance make it an excellent choice for powering telecommunications devices.
3. Medical Devices: The F0503XT-1WR3-TR's isolation capabilities and RoHS compliance make it suitable for use in medical equipment, ensuring patient safety and device reliability.
4. Automotive Electronics: The converter's ability to handle a wide input voltage range makes it ideal for use in automotive electronics, where power sources can vary.

Conclusion of F0503XT-1WR3-TR

The F0503XT-1WR3-TR is a versatile and reliable DC-DC converter that offers high efficiency, robust isolation, and a compact design. Its wide input voltage range, RoHS compliance, and REACH unaffected status make it an excellent choice for a variety of applications in the ITE sector. With its unique features and advantages, the F0503XT-1WR3-TR is a valuable addition to any electronic system requiring a high-performance, isolated power solution.
