QA01

QA01 Description

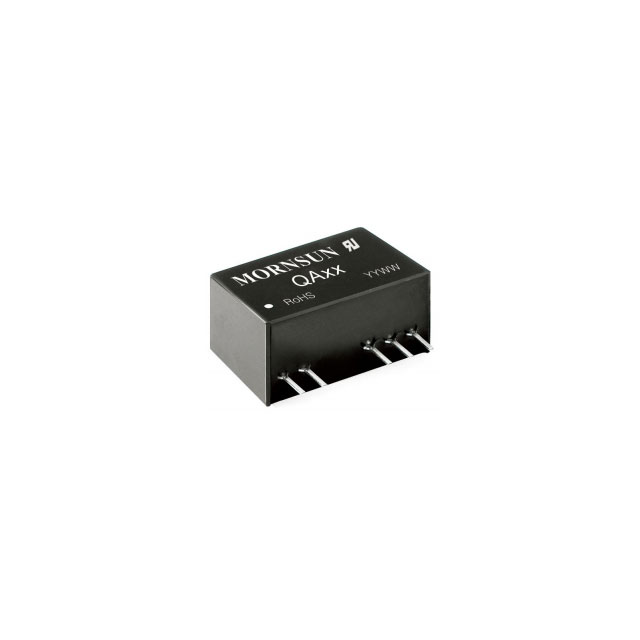

The QA01 is a high-performance, isolated module DC-DC converter designed and manufactured by Mornsun America, LLC. This device is part of the QA series and is specifically engineered for IGBT driver applications. With a compact size of 0.77" L x 0.39" W x 0.49" H (19.5mm x 9.8mm x 12.5mm), the QA01 offers a versatile solution for space-constrained environments. It features a through-hole mounting type, making it easy to integrate into various electronic systems.

QA01 Features

• Voltage Input Range: The QA01 operates with an input voltage range of 14.5V to 15.5V, providing flexibility in power supply options.
• Output Voltage and Current: This converter offers two output voltages, 15V, with maximum output currents of 80mA and 40mA, respectively, catering to different power requirements.
• Efficiency: The QA01 boasts an efficiency of 80%, ensuring energy savings and reduced heat generation.
• Isolation: It provides 3 kV of voltage isolation, ensuring safety and reliability in high-voltage applications.
• Regulation: The QA01 maintains stable output voltage and current, even under varying input conditions.
• Safety and Compliance: It is REACH unaffected, RoHS3 compliant, and has an MSL of 1, making it suitable for a wide range of applications.
• Approvals: The QA01 is certified by CB, CE, and cURus, ensuring compliance with international safety standards.

QA01 Applications

The QA01 is ideal for various applications in the ITE (Commercial) sector, particularly in scenarios where high reliability and safety are paramount. Some specific use cases include:

• Industrial Automation: Powering IGBT drivers in motor control systems and other automation equipment.
• Telecommunications: Providing stable power to IGBT drivers in telecommunications infrastructure.
• Medical Equipment: Ensuring reliable power supply to IGBT drivers in medical devices, where safety is critical.
• Power Supplies: Used in power supply systems where isolated DC-DC conversion is required.

Conclusion of QA01

The QA01 from Mornsun America, LLC, stands out as a reliable and efficient DC-DC converter for IGBT driver applications. Its compact size, high efficiency, and robust safety features make it an excellent choice for a wide range of commercial and industrial applications. With its unique combination of performance, safety, and compliance, the QA01 offers a superior solution over similar models in the market.
