QA03

QA03 Description

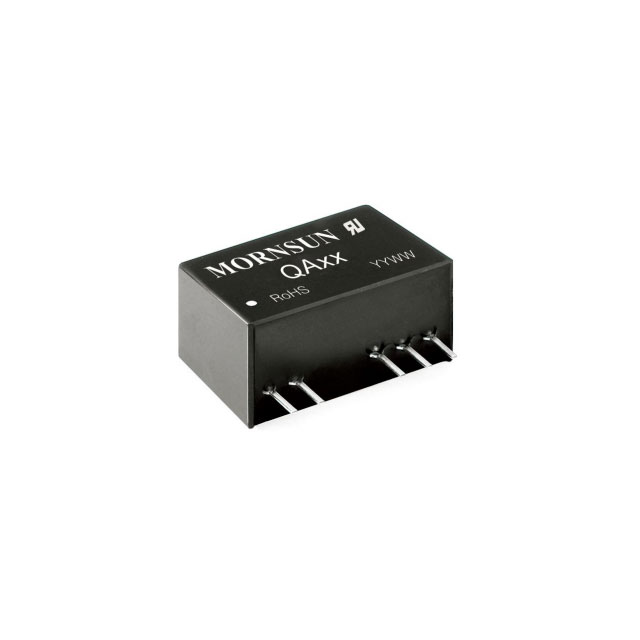

The QA03, manufactured by Mornsun America, LLC, is a high-performance, isolated module DC-DC converter designed for IGBT driver applications. This versatile device offers a wide range of technical specifications and performance benefits, making it an ideal choice for various commercial and industrial applications. With a compact size of 0.77" L x 0.39" W x 0.49" H (19.5mm x 9.8mm x 12.5mm), the QA03 is suitable for space-constrained environments.

QA03 Features

Key features of the QA03 include:

1. Voltage Input Range: The QA03 accepts a wide input voltage range of 23.3V to 24.7V, ensuring reliable operation under varying power supply conditions.

2. Output Current: The device provides two output currents - 80mA and 40mA - catering to different power requirements.

3. Efficiency: With an impressive efficiency of 80%, the QA03 ensures minimal power loss and optimal performance.

4. Isolation Voltage: The QA03 offers 3 kV isolation, providing excellent electrical isolation between input and output, ensuring safety and reliability.

5. Approval Agencies: The QA03 is compliant with CB, CE, and cURus standards, ensuring compliance with international safety and performance requirements.

6. RoHS Compliance: The QA03 is RoHS3 compliant, meeting environmental regulations and promoting sustainable manufacturing practices.

7. Moisture Sensitivity Level (MSL): With an MSL of 1 (Unlimited), the QA03 is suitable for applications with varying humidity levels.

8. Mounting Type: The QA03 features a through-hole mounting type, providing secure and reliable installation in various applications.

9. Package: The device is available in a tube package, ensuring easy handling and storage.

QA03 Applications

The QA03 is ideal for a wide range of applications, including:

1. Industrial Control Systems: The QA03's high efficiency and isolation make it suitable for powering IGBT drivers in industrial control systems.

2. Commercial Equipment: The device's compact size and wide input voltage range make it an excellent choice for powering ITE (Commercial) applications.

3. Automotive Systems: The QA03's isolation and efficiency make it suitable for powering IGBT drivers in automotive systems, ensuring reliable operation under varying conditions.

4. Telecommunications: The device's high efficiency and isolation make it ideal for powering IGBT drivers in telecommunications equipment, ensuring reliable operation and minimal power loss.

Conclusion of QA03

The QA03 is a versatile, high-performance DC-DC converter designed for IGBT driver applications. Its wide input voltage range, high efficiency, and isolation make it an ideal choice for various commercial and industrial applications. With its compact size, RoHS compliance, and approval from international agencies, the QA03 offers a reliable and environmentally friendly solution for powering IGBT drivers in a wide range of applications.
