WRF4803S-1WR2

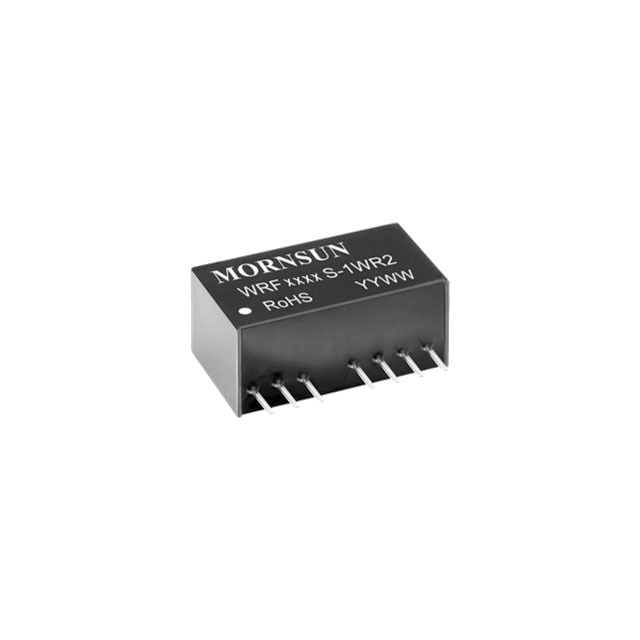

WRF4803S-1WR2 Description

The WRF4803S-1WR2 is an isolated module DC-DC converter designed and manufactured by Mornsun America, LLC. This high-performance converter offers a wide input voltage range of 36V to 75V and delivers a maximum output current of 303mA at 3.3V. With an efficiency of 75%, it ensures optimal power conversion and reduced energy loss. The converter is compliant with RoHS3 standards and REACH unaffected, making it an environmentally friendly choice for various applications.

WRF4803S-1WR2 Features

• Voltage Input Range: 36V to 75V
• Output Voltage: 3.3V
• Maximum Output Current: 303mA
• Efficiency: 75%
• Isolation Voltage: 3 kV
• Mounting Type: Through Hole
• Size/Dimension: 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm)
• Number of Outputs: 1
• Power (Watts): 1W
• Type: Isolated Module
• Remote On/Off Feature
• Moisture Sensitivity Level (MSL): 1 (Unlimited)
• Approval Agency: CE, EN, UKCA
• ECCN: EAR99
• HTSUS: 8504.40.9580
• Package: Tube

WRF4803S-1WR2 Applications

The WRF4803S-1WR2 is ideal for ITE (Commercial) applications where reliable and efficient power conversion is required. Its wide input voltage range and isolated output make it suitable for various commercial and industrial equipment, including:

• Industrial Control Systems
• Telecommunications Equipment
• Security and Surveillance Systems
• Medical Devices
• Automotive Electronics

Conclusion of WRF4803S-1WR2

The WRF4803S-1WR2 is a versatile and efficient isolated DC-DC converter that offers a wide input voltage range, high isolation voltage, and remote On/Off feature. Its compact size, RoHS3 compliance, and REACH unaffected status make it an excellent choice for a wide range of commercial and industrial applications. With its performance benefits and unique features, the WRF4803S-1WR2 stands out as a reliable and environmentally friendly solution for power conversion needs.
