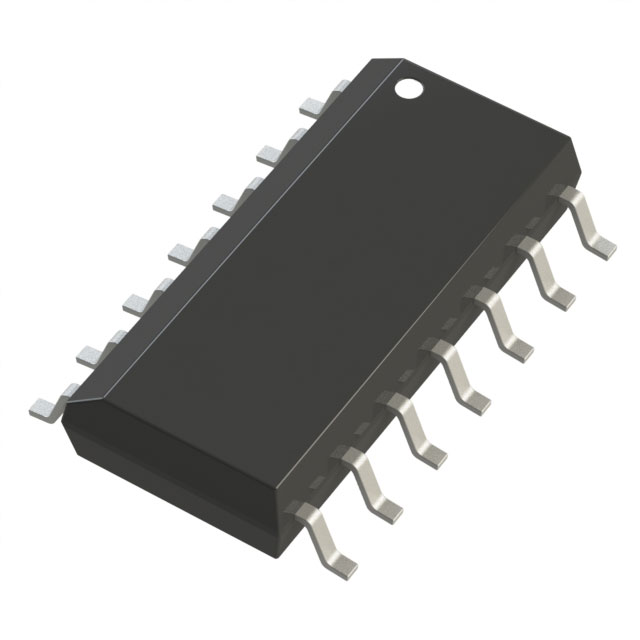

74AHCT132D,112

74AHCT132D,112 Description

The 74AHCT132D,112 is a high-performance NAND gate logic IC from Nexperia, designed for surface-mount applications. This obsolete but reliable component is part of the 74AHCT series, known for its robust performance and compatibility with a wide range of digital systems. The 74AHCT132D,112 features four independent NAND gates, each with two inputs, making it suitable for complex digital logic operations. It operates within a supply voltage range of 4.5V to 5.5V and offers a maximum propagation delay of 8ns at 5V with a 50pF load, ensuring fast and efficient signal processing. The IC is packaged in a tube format, which is ideal for bulk handling and automated assembly processes.

74AHCT132D,112 Features

• High-Speed Performance: With a maximum propagation delay of 8ns at 5V and a 50pF load, the 74AHCT132D,112 ensures rapid signal processing, making it suitable for high-speed digital applications.
• Low Power Consumption: The IC has a maximum quiescent current of 2 µA, which significantly reduces power consumption and heat generation, enhancing system efficiency and reliability.
• Wide Operating Voltage Range: The 74AHCT132D,112 operates within a supply voltage range of 4.5V to 5.5V, providing flexibility and compatibility with various power supply configurations.
• Robust Input Logic Levels: The input logic levels are defined as 0.5V to 0.6V for low and 1.9V to 2.1V for high, ensuring reliable and accurate signal interpretation.
• High Output Current Capability: The IC can source and sink up to 8mA of current, allowing it to drive multiple loads effectively.
• Surface-Mount Compatibility: The surface-mount package type facilitates easy integration into modern PCB designs, supporting automated assembly processes.
• Compliance and Safety: The 74AHCT132D,112 is REACH unaffected and RoHS3 compliant, ensuring it meets environmental and safety standards for electronic components.
• Moisture Sensitivity Level: With an MSL of 1 (Unlimited), the IC is highly resistant to moisture, reducing the risk of damage during storage and assembly.

74AHCT132D,112 Applications

The 74AHCT132D,112 is ideal for a variety of applications requiring high-speed digital logic operations. Its robust performance and compatibility make it suitable for:

• Digital Signal Processing: The fast propagation delay and high output current capability make it ideal for processing digital signals in real-time applications.
• Control Systems: The IC can be used in control systems where precise and rapid decision-making is required, such as in industrial automation and robotics.
• Data Processing: The NAND gates can be used to implement complex logic functions in data processing systems, enhancing the efficiency of digital circuits.
• Consumer Electronics: The low power consumption and wide operating voltage range make it suitable for consumer electronics, where power efficiency and reliability are critical.
• Telecommunications: The IC's high-speed performance and robustness make it suitable for use in telecommunication equipment, where signal integrity and reliability are paramount.

Conclusion of 74AHCT132D,112

The 74AHCT132D,112 is a versatile and reliable NAND gate IC that offers high-speed performance, low power consumption, and robust input logic levels. Despite its obsolete status, its unique features and advantages make it a valuable component for various high-speed digital applications. Its compatibility with a wide range of operating voltages and its compliance with environmental standards further enhance its appeal. The 74AHCT132D,112 is an excellent choice for engineers and designers looking for a reliable and efficient solution for their digital logic needs.
