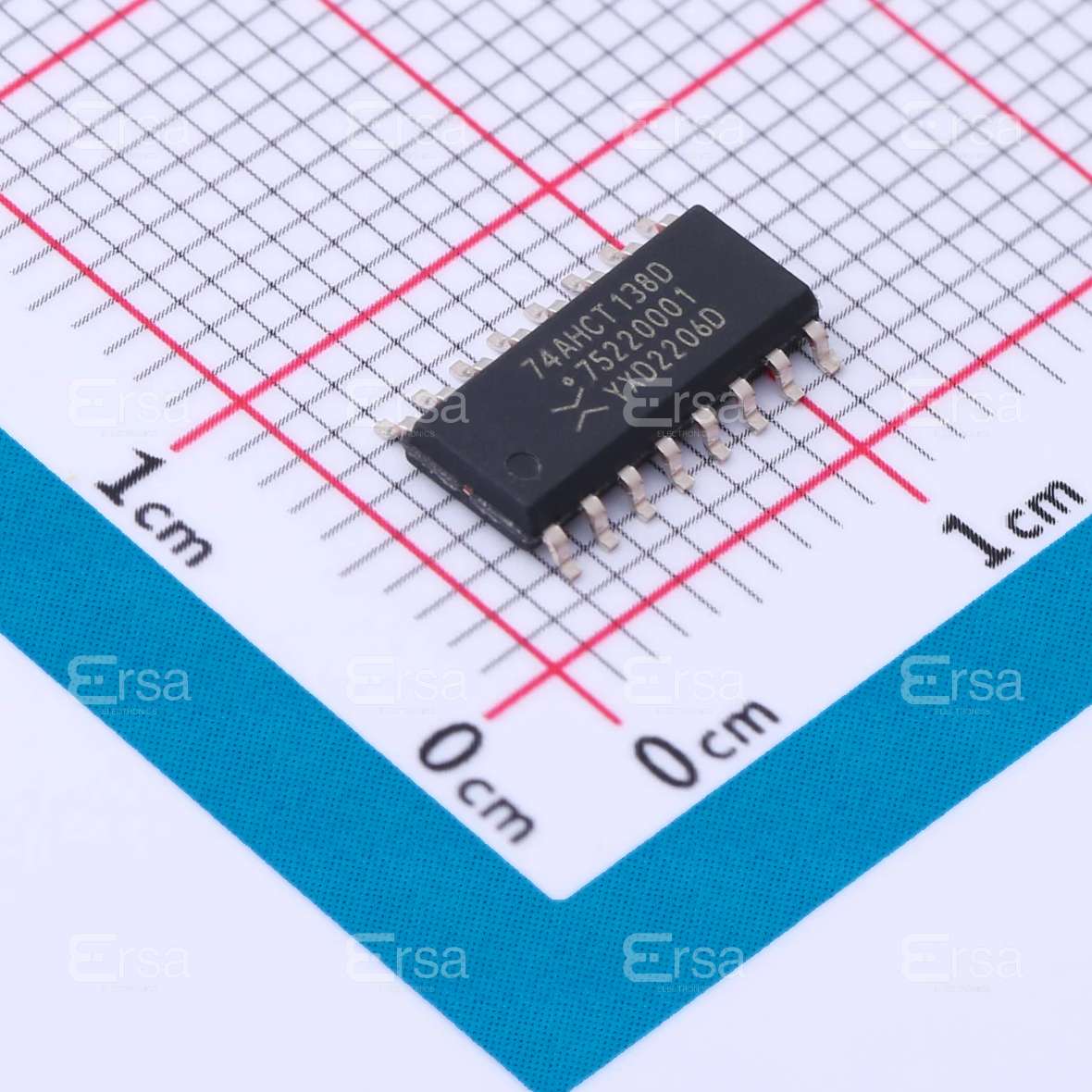

74AHCT138D,118

74AHCT138D,118 Description

The 74AHCT138D,118 is a high-performance decoder/demultiplexer integrated circuit designed for a wide range of digital applications. Manufactured by Nexperia USA Inc., this device belongs to the 74AHCT series and is known for its robustness and reliability. It features a single 3:8 decoder/demultiplexer circuit, making it ideal for converting 3-bit binary inputs into 8-bit outputs. The 74AHCT138D,118 operates on a single supply voltage ranging from 4.5V to 5.5V, ensuring compatibility with various power supply configurations.

This IC is designed for surface mount applications, offering a compact and efficient solution for modern electronic designs. It is packaged in a Tape & Reel (TR) format, which is suitable for automated assembly processes. The 74AHCT138D,118 is REACH unaffected and RoHS3 compliant, ensuring it meets the latest environmental and safety standards. With a moisture sensitivity level (MSL) of 1, it is suitable for unlimited storage periods without requiring special handling.

74AHCT138D,118 Features

• High Current Capability: The 74AHCT138D,118 provides a high output current capability of 8mA for both high and low states, ensuring reliable signal transmission and driving capabilities.
• Single Supply Operation: Operating from a single supply voltage between 4.5V and 5.5V, this IC simplifies power supply design and reduces complexity in power management.
• Surface Mount Technology: Suitable for automated assembly processes, the surface mount package enhances reliability and reduces the risk of mechanical damage.
• Environmental Compliance: The 74AHCT138D,118 is REACH unaffected and RoHS3 compliant, making it suitable for environmentally conscious designs and applications.
• Moisture Sensitivity Level 1: With an MSL of 1, the device can be stored indefinitely without requiring special handling, reducing the risk of moisture-related failures.

74AHCT138D,118 Applications

The 74AHCT138D,118 is versatile and finds applications in various digital systems where decoding and demultiplexing are required. Some specific use cases include:

• Microcontroller Systems: Used to decode address lines in microcontroller applications, enabling efficient memory management and peripheral interfacing.
• Digital Signal Processing: Ideal for converting parallel data streams into serial form, facilitating data transmission and processing.
• Communication Systems: Used in multiplexing and demultiplexing data channels, enhancing the efficiency of communication protocols.
• Consumer Electronics: Employed in devices such as digital audio and video equipment, where efficient signal routing and decoding are essential.

Conclusion of 74AHCT138D,118

The 74AHCT138D,118 stands out as a reliable and efficient decoder/demultiplexer IC, offering high current capability and single supply operation. Its surface mount package and environmental compliance make it suitable for modern electronic designs. With a wide range of applications in microcontroller systems, digital signal processing, and communication systems, the 74AHCT138D,118 provides a robust solution for decoding and demultiplexing tasks. Its moisture sensitivity level of 1 and RoHS3 compliance further enhance its suitability for long-term storage and environmentally conscious applications.
