74LVC04ABQ,115

74LVC04ABQ,115 Description

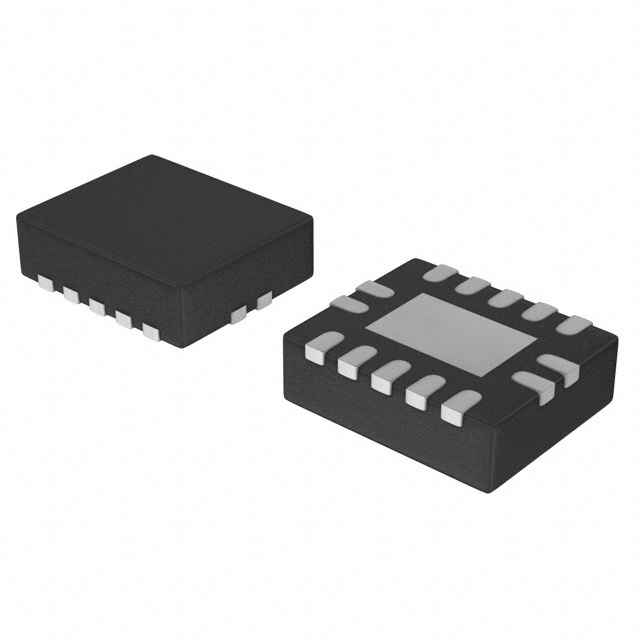

The 74LVC04ABQ,115 is a high-performance, surface-mount logic IC chip designed for a wide range of digital applications. Manufactured by Nexperia USA Inc., this inverter IC belongs to the 74LVC series and is housed in a 14-pin HVQFN package. It features six independent inverter circuits, each with a single input, making it ideal for applications requiring multiple inversion functions. The device operates over a wide supply voltage range of 1.2V to 3.6V, ensuring compatibility with various power supply configurations.

74LVC04ABQ,115 Features

• Max Propagation Delay: 4.5ns @ 3.3V, 50pF, ensuring rapid signal processing and minimal latency.
• Logic Type: Inverter, providing logical inversion of input signals.
• Mounting Type: Surface Mount, suitable for compact and high-density PCB designs.
• Input Logic Levels: Low (0.12V ~ 0.8V) and High (1.08V ~ 2V), offering broad compatibility with different digital systems.
• Current Specifications: Quiescent current of 40 µA (max), and output current of 24mA (both high and low), ensuring efficient power usage and robust signal handling.
• Compliance: ROHS3 Compliant and REACH Unaffected, ensuring environmental and regulatory compliance.
• Packaging: Tape & Reel (TR), facilitating automated assembly processes.
• Moisture Sensitivity Level: MSL 1 (Unlimited), making it suitable for a wide of range manufacturing environments.

74LVC04ABQ,115 Applications

The 74LVC04ABQ,115 is well-suited for a variety of applications where logical and inversion signal processing are critical. Its low propagation delay and wide voltage range make it ideal for high-speed digital circuits, such as:

• Digital Signal Processing: Inverting signals in digital communication systems.
• Microcontroller Interfaces: Managing inverted control signals in embedded systems.
• Clock Signal Generation: Creating inverted clock signals for synchronous digital circuits.
• Bus Line Management: Inverting data lines in bus architectures to ensure proper signal integrity.

Conclusion of 74VCL04ABQ,115

The 74LVC04ABQ,115 stands out in the market due to its combination of high performance, versatility, and compliance with industry standards. Its low propagation delay and wide operating voltage range make it a reliable choice for high-speed digital applications. The device's surface-mount package and compatibility with automated assembly processes further enhance its appeal for modern electronics manufacturing. Whether used in digital signal processing, microcontroller interfaces, clock or signal generation, the 74LVC04ABQ,115 offers a robust and efficient solution for logical inversion needs.
