MUSES8920E

MUSES8920E Description

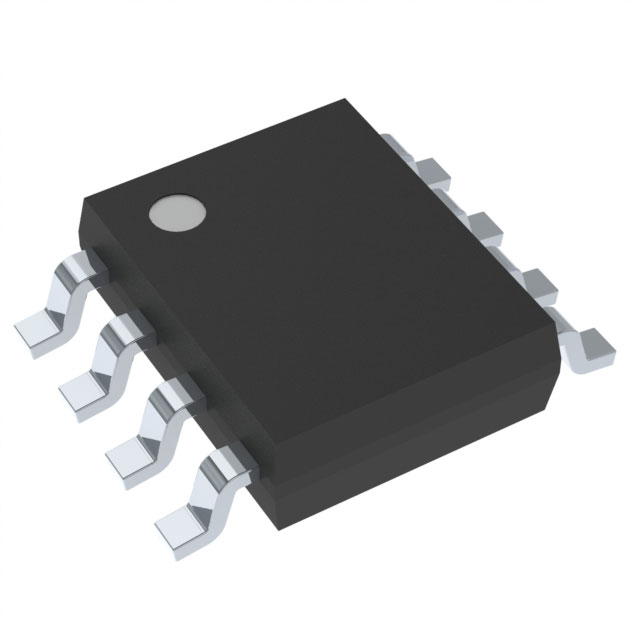

The MUSES8920E is an obsolete dual audio operational amplifier designed by Nisshinbo Micro Devices Inc., known for its high performance and reliability in audio applications. This linear IC chip is housed in an 8SOP package and is available in a tube package type, making it suitable for surface mount applications. It features a supply voltage range of 7 V to 34 V, allowing it to operate efficiently across a wide range of power supplies. The MUSES8920E draws a supply current of 9 mA, ensuring low power consumption while maintaining high performance.

MUSES8920E Features

Technical Specifications

• Supply Voltage Span: The MUSES8920E operates within a supply voltage range of 7 V to 34 V, providing flexibility for various power supply configurations.
• Slew Rate: With a high slew rate of 25 V/µs, the MUSES8920E can handle fast signal transitions, ensuring minimal distortion in audio applications.
• Gain Bandwidth Product: The amplifier boasts a gain bandwidth product of 11 MHz, enabling it to maintain high fidelity and clarity in audio signals.
• Low Input Bias Current: The low input bias current of 5 pA minimizes the impact of input bias on the signal, resulting in cleaner audio output.
• Low Input Offset Voltage: An input offset voltage of 800 µV ensures high accuracy and stability in signal processing.
• Supply Current: The low supply current of 9 mA makes the MUSES8920E energy-efficient, ideal for applications where power consumption is a concern.

Performance Benefits

• High Fidelity Audio: The combination of a high slew rate and low input offset voltage ensures that the MUSES8920E delivers high-fidelity audio performance, making it ideal for high-quality audio systems.
• Wide Operating Voltage Range: The wide supply voltage range allows the MUSES8920E to be used in a variety of applications, from low-power portable devices to high-voltage professional audio equipment.
• Low Power Consumption: The low supply current ensures that the MUSES8920E operates efficiently, reducing power consumption and heat generation.

MUSES8920E Applications

The MUSES8920E is particularly well-suited for applications requiring high-quality audio processing. Its dual-channel design makes it ideal for stereo audio systems, where each channel can be independently controlled and optimized. Specific use cases include:

• High-End Audio Equipment: The MUSES8920E is perfect for high-end audio amplifiers, preamplifiers, and mixing consoles, where high fidelity and low distortion are critical.
• Professional Audio Systems: Its wide operating voltage range and low power consumption make it suitable for professional audio systems, such as studio monitors and live sound reinforcement.
• Portable Audio Devices: The low power consumption and surface mount package type make the MUSES8920E ideal for portable audio devices, such as MP3 players and portable speakers.

Conclusion of MUSES8920E

The MUSES8920E, despite being an obsolete model, remains a benchmark in the field of audio operational amplifiers. Its high slew rate, low input bias current, and wide operating voltage range make it a versatile and reliable choice for a variety of audio applications. While newer models may offer additional features, the MUSES8920E continues to be a preferred choice for engineers and designers seeking high-fidelity audio performance.
