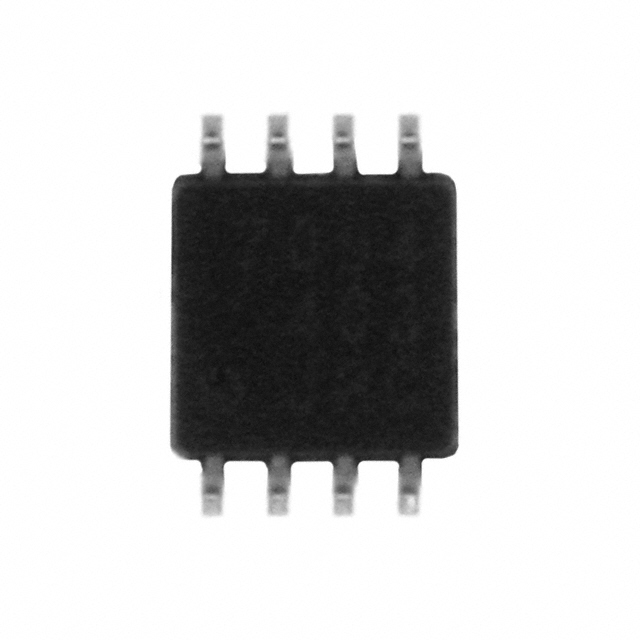

NJU7094RB1-TE1

NJU7094RB1-TE1 Description

The NJU7094RB1-TE1 is a high-performance CMOS operational amplifier designed by Nisshinbo Micro Devices Inc. This dual-circuit IC is packaged in an 8-pin small outline package (8TVSP) and is optimized for a wide range of applications requiring precision and reliability. The device operates within a supply voltage range of 1 V to 5.5 V, making it suitable for both low-power and standard voltage applications. The NJU7094RB1-TE1 features an input bias current of just 1 pA and an input offset voltage of 4 mV, ensuring high accuracy and stability in signal processing.

NJU7094RB1-TE1 Features

• Amplifier Type: CMOS
  • The CMOS design of the NJU7094RB1-TE1 offers low power consumption and high input impedance, making it ideal for applications where power efficiency and signal integrity are critical.
• Supply Voltage Range: 1 V to 5.5 V
  • This wide supply voltage range allows the NJU7094RB1-TE1 to be used in various systems, from low-power battery-operated devices to standard voltage applications.
• Gain Bandwidth Product: 200 kHz
  • The 200 kHz gain bandwidth product ensures the amplifier can handle a wide range of frequencies, making it suitable for applications requiring high-frequency signal processing.
• Slew Rate: 0.1 V/µs
  • The 0.1 V/µs slew rate provides a balance between speed and stability, ensuring the amplifier can handle fast signal transitions without significant distortion.
• Low Input Bias Current: 1 pA
  • The extremely low input bias current of 1 pA minimizes the impact of the amplifier on the input signal, ensuring high accuracy and reliability in precision applications.
• Low Input Offset Voltage: 4 mV
  • The low input offset voltage of 4 mV ensures minimal error in the output signal, making the NJU7094RB1-TE1 suitable for applications requiring high precision.
• Surface Mount Package: 8TVSP
  • The 8TVSP surface mount package allows for easy integration into compact and high-density PCB designs, making it ideal for modern electronic systems.
• Compliance and Reliability:
  • RoHS Compliant: Ensures the product meets environmental standards for restricted hazardous substances.
  • REACH Unaffected: Indicates compliance with the Registration, Evaluation, Authorization, and Restriction of Chemicals regulations.
  • Moisture Sensitivity Level (MSL): 2 (1 Year), ensuring the device remains reliable and functional even in varying environmental conditions.

NJU7094RB1-TE1 Applications

The NJU7094RB1-TE1 is well-suited for a variety of applications due to its precision, low power consumption, and wide operating voltage range. Some specific use cases include:

• Signal Conditioning: Ideal for conditioning weak signals in sensor applications, ensuring high accuracy and minimal distortion.
• Analog-to-Digital Conversion: The low input bias current and offset voltage make it suitable for driving analog-to-digital converters, ensuring high precision and reliability.
• Battery-Powered Devices: The wide supply voltage range and low power consumption make it ideal for battery-operated devices, extending battery life and maintaining performance.
• Medical Equipment: The precision and reliability of the NJU7094RB1-TE1 make it suitable for medical devices where accuracy and stability are paramount.
• Industrial Control Systems: The robust design and wide operating range make it suitable for industrial applications requiring high precision and reliability.

Conclusion of NJU7094RB1-TE1

The NJU7094RB1-TE1 stands out as a versatile and high-performance CMOS operational amplifier, offering a combination of precision, low power consumption, and wide operating voltage range. Its low input bias current and offset voltage ensure high accuracy and reliability, making it ideal for precision applications. The surface mount package and compliance with environmental regulations further enhance its suitability for modern electronic systems. Whether in signal conditioning, analog-to-digital conversion, or battery-powered devices, the NJU7094RB1-TE1 provides a reliable and efficient solution for a wide range of applications.
