NTE4001B

NTE4001B Description

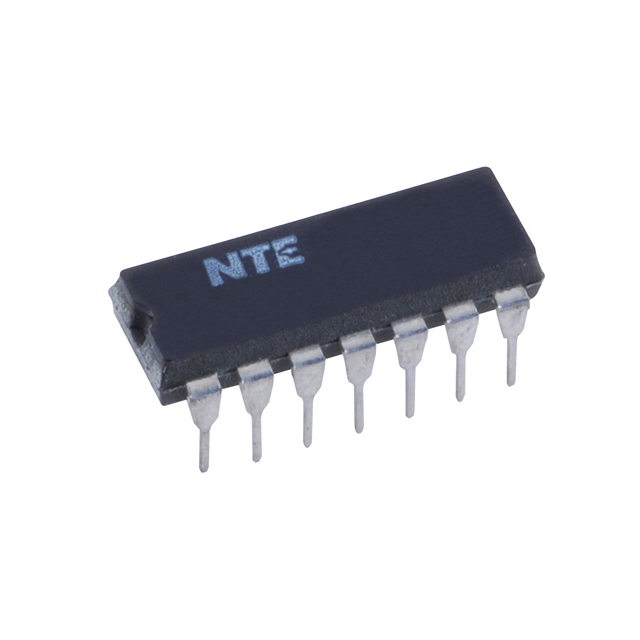

The NTE4001B is a high-performance NOR gate logic IC chip designed for a wide range of digital circuit applications. Manufactured by NTE Electronics, Inc., this chip belongs to the 4000B series and is housed in a through-hole package, making it suitable for both prototyping and production environments. The NTE4001B features four NOR gates, each with two inputs, providing versatile logic functionality in a compact 14-pin DIP package.

NTE4001B Features

• Logic Type: The NTE4001B is a NOR gate IC, which performs a logical NOR operation on its inputs. This makes it ideal for applications requiring digital logic processing.
• Max Propagation Delay: The maximum propagation delay is 80ns at 15V with a load capacitance of 50pF, ensuring fast signal processing and minimal latency in digital circuits.
• Voltage - Supply: The chip operates within a wide supply voltage range of 3V to 18V, providing flexibility in power supply requirements.
• Input Logic Levels: The input logic levels are well-defined, with a low level ranging from 1.5V to 4V and a high level from 3.5V to 11V, ensuring compatibility with various digital systems.
• Current - Quiescent (Max): The quiescent current is extremely low at a maximum of 1 µA, making the NTE4001B energy-efficient and suitable for low-power applications.
• Current - Output High, Low: The output current capability is 3.4mA for both high and low states, providing robust performance in driving digital loads.
• Number of Circuits: The NTE4001B contains four NOR gates, each with two inputs, offering a total of eight input pins and four output pins, making it a highly versatile logic IC.
• Package: The through-hole package ensures reliable mechanical and electrical connections, suitable for both manual and automated assembly processes.
• Compliance: The NTE4001B is ROHS3 compliant, ensuring it meets environmental standards for hazardous substances, and has an ECCN classification of EAR99, indicating it is not subject to export controls.

NTE4001B Applications

The NTE4001B is ideal for a variety of applications due to its versatile logic functionality and wide operating voltage range. Some specific use cases include:

• Digital Logic Circuits: The NOR gates can be used to build complex digital logic circuits, such as decoders, multiplexers, and flip-flops.
• Control Systems: The low quiescent current and robust output current capability make it suitable for use in control systems where energy efficiency and reliability are critical.
• Consumer Electronics: The wide operating voltage range and through-hole package make it suitable for consumer electronics applications where flexibility and ease of assembly are important.
• Industrial Automation: The NTE4001B can be used in industrial automation systems for signal processing and control logic, ensuring reliable operation in harsh environments.

Conclusion of NTE4001B

The NTE4001B is a highly versatile and reliable NOR gate logic IC chip, offering a wide range of technical specifications and performance benefits. Its low propagation delay, wide operating voltage range, and low quiescent current make it an excellent choice for a variety of digital circuit applications. The through-hole package ensures reliable mechanical and electrical connections, making it suitable for both prototyping and production environments. With its ROHS3 compliance and wide range of applications, the NTE4001B is an ideal choice for engineers and designers looking for a high-performance logic IC solution.
