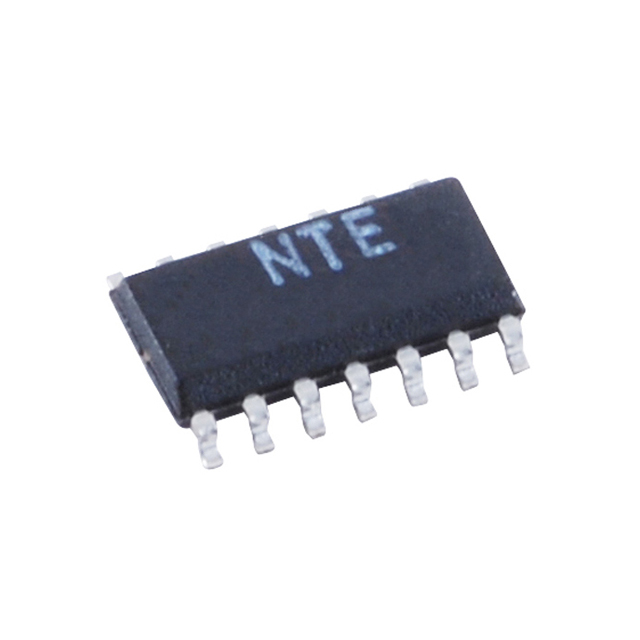

NTE4012BT Description

The NTE4012BT is a high-performance IC NAND gate designed for a wide range of digital logic applications. Manufactured by NTE Electronics, Inc., this device belongs to the 4000B series and features a surface-mount package, making it ideal for modern electronic circuits. The NTE4012BT is housed in a 14SOIC package, which offers a compact and robust solution for space-constrained designs.

This NAND gate is characterized by its ability to operate within a wide supply voltage range of 3V to 18V, providing flexibility in various power supply configurations. It supports a maximum propagation delay of 100ns at 15V with a load capacitance of 50pF, ensuring fast and reliable signal processing. The device has four inputs and two circuits, making it suitable for complex logic operations.

NTE4012BT Features

• Wide Operating Voltage Range: The NTE4012BT operates within a voltage range of 3V to 18V, offering compatibility with a variety of power supply systems.
• Low Quiescent Current: With a maximum quiescent current of 1 µA, the device is highly energy-efficient, making it suitable for battery-powered and low-power applications.
• High Output Current Capability: The NAND gate can provide up to 8.8mA for both high and low outputs, ensuring robust performance in driving various loads.
• Flexible Input Logic Levels: The input logic levels are defined as 1.5V to 4V for low and 3.5V to 11V for high, providing compatibility with different digital signal standards.
• Surface-Mount Technology (SMT): The surface-mount package allows for easy integration into modern PCB designs, enhancing reliability and reducing the overall footprint.
• Compliance and Standards: The NTE4012BT is ROHS3 compliant and falls under the ECCN classification of EAR99, ensuring it meets environmental and regulatory standards.

NTE4012BT Applications

The NTE4012BT is ideal for a variety of applications due to its versatile design and performance characteristics. Some specific use cases include:

• Digital Logic Circuits: The NAND gate is a fundamental building block for digital logic operations, making it suitable for use in microprocessors, microcontrollers, and other digital systems.
• Signal Processing: The low propagation delay and high output current capability make it ideal for applications requiring fast and reliable signal processing, such as in communication systems and data transmission.
• Consumer Electronics: The wide operating voltage range and low quiescent current make it suitable for consumer electronics where power efficiency and flexibility are crucial.
• Industrial Control Systems: The robustness and reliability of the surface-mount package make it ideal for industrial applications where durability and performance are paramount.

Conclusion of NTE4012BT

The NTE4012BT is a versatile and high-performance NAND gate that offers significant advantages over similar models. Its wide operating voltage range, low quiescent current, and high output current capability make it suitable for a broad range of applications. The surface-mount package ensures easy integration into modern PCB designs, while its compliance with environmental and regulatory standards ensures it meets industry requirements. Whether used in digital logic circuits, signal processing, consumer electronics, or industrial control systems, the NTE4012BT provides reliable performance and energy efficiency, making it a valuable component for any electronic design.
