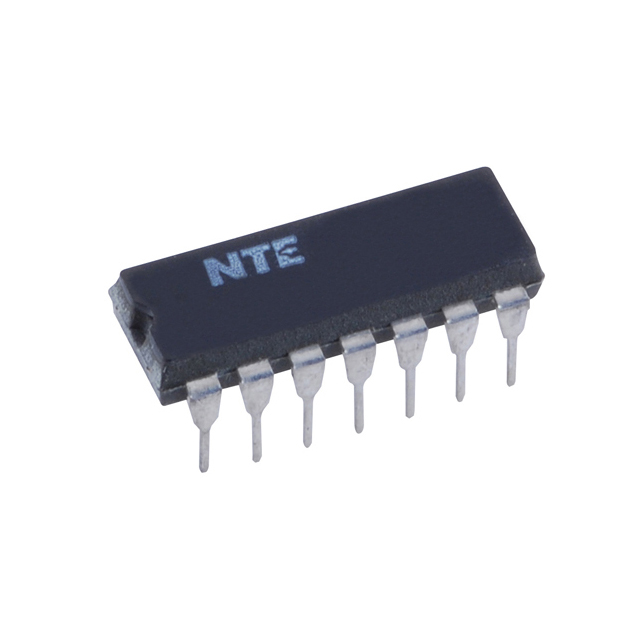

NTE4069 Description

The NTE4069 is a high-performance logic IC chip designed by NTE Electronics, Inc., featuring a 6-channel inverter with a single input per channel. This device is part of the 4000 series and is housed in a through-hole 14DIP package, making it suitable for a wide range of electronic applications. The NTE4069 operates within a supply voltage range of 3V to 18V, providing flexibility for various power supply configurations. It has a maximum propagation delay of 55ns at 15V and 50pF, ensuring fast signal processing and minimal latency.

NTE4069 Features

• Max Propagation Delay: 55ns @ 15V, 50pF, ensuring rapid signal inversion and minimal delay.
• Logic Type: Inverter, with each of the six channels capable of inverting input signals.
• Input Logic Levels: Low (1V ~ 2.5V) and High (4V ~ 12.5V), providing compatibility with a wide range of input signal levels.
• Supply Voltage Range: 3V to 18V, offering flexibility in power supply requirements.
• Current Ratings: Quiescent current (Max) of 30 µA, and output current (High, Low) of 8.8mA, ensuring efficient power usage and robust performance.
• Number of Inputs: 1 per channel, with a total of 6 channels, providing multiple inversion capabilities in a single package.
• Mounting Type: Through-hole, suitable for applications requiring robust mechanical stability.
• Package: Bag, ensuring safe and convenient storage and handling.
• Compliance: ROHS3 compliant, meeting environmental and safety standards.
• Product Status: Active, ensuring availability and support for ongoing projects.

NTE4069 Applications

The NTE4069 is ideal for applications requiring multiple signal inversion with minimal delay and efficient power usage. Its wide supply voltage range and flexible input logic levels make it suitable for various electronic systems, including:

• Digital Signal Processing: Inverting digital signals in microcontroller and microprocessor circuits.
• Communication Systems: Inverting signals in data transmission and reception circuits.
• Control Systems: Inverting control signals in automation and robotics applications.
• Consumer Electronics: Inverting signals in devices such as televisions, gaming consoles, and home automation systems.

Conclusion of NTE4069

The NTE4069 is a versatile and efficient logic IC chip that offers significant advantages over similar models. Its fast propagation delay, wide supply voltage range, and flexible input logic levels make it suitable for a variety of applications. The through-hole mounting type and ROHS3 compliance ensure robustness and environmental safety. Whether used in digital signal processing, communication systems, or consumer electronics, the NTE4069 provides reliable performance and efficient power usage, making it an excellent choice for engineers and designers in the electronics industry.
