NTE4081B

NTE4081B Description

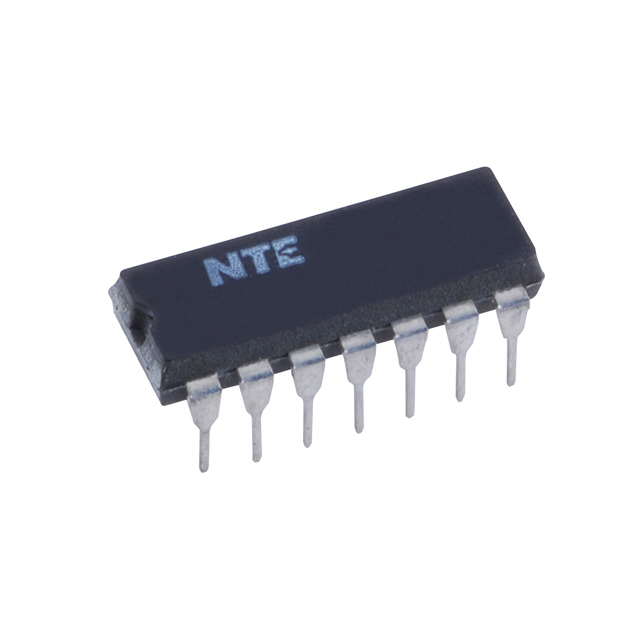

The NTE4081B is a high-performance AND gate integrated circuit (IC) designed for a wide range of digital logic applications. Manufactured by NTE Electronics, Inc., this IC is part of the 4000B series and is housed in a through-hole package, making it suitable for both prototyping and production environments. The NTE4081B features four independent AND gates, each with two inputs, providing versatile logic functionality in a compact 14-pin DIP package.

NTE4081B Features

• Max Propagation Delay: The NTE4081B offers a maximum propagation delay of 100ns at 15V with a 50pF load, ensuring fast signal processing and minimal latency in digital circuits.
• Wide Operating Voltage Range: With a supply voltage range of 3V to 18V, the NTE4081B is highly versatile and can be used in various power supply configurations, making it suitable for both low-power and high-voltage applications.
• Low Quiescent Current: The IC has a maximum quiescent current of only 1 µA, which is ideal for battery-powered devices and applications where power consumption is a critical concern.
• High Output Current: The NTE4081B can source and sink up to 8.8mA per output, providing robust performance and the ability to drive multiple loads or interface with other digital components.
• Flexible Input Logic Levels: The input logic levels are specified as 1.5V to 4V for low and 3.5V to 11V for high, allowing for compatibility with a variety of digital systems and ensuring reliable operation across different voltage standards.
• RoHS3 Compliant: The NTE4081B is RoHS3 compliant, meeting stringent environmental standards and ensuring that it is suitable for use in environmentally conscious designs.
• Through-Hole Mounting: The through-hole package type facilitates easy installation on printed circuit boards (PCBs) and is well-suited for manual soldering and prototyping.

NTE4081B Applications

The NTE4081B is ideal for a wide range of applications where reliable digital logic functionality is required. Some specific use cases include:

• Digital Signal Processing: The fast propagation delay and robust output current make the NTE4081B suitable for processing digital signals in real-time applications, such as data transmission and control systems.
• Microcontroller Interfacing: The wide operating voltage range and flexible input logic levels allow the NTE4081B to interface seamlessly with various microcontrollers, providing essential logic functions for complex digital systems.
• Automotive Electronics: The high voltage tolerance and low quiescent current make the NTE4081B an excellent choice for automotive applications where reliability and power efficiency are paramount.
• Industrial Control Systems: The robustness and versatility of the NTE4081B make it suitable for industrial control systems, where it can be used to implement logic functions for machinery control, automation, and monitoring.

Conclusion of NTE4081B

The NTE4081B is a highly versatile AND gate IC that offers a combination of fast performance, wide operating voltage range, and low power consumption. Its RoHS3 compliance and through-hole package make it suitable for a variety of applications, from prototyping to large-scale production. The NTE4081B stands out for its ability to provide reliable digital logic functionality in a compact and efficient package, making it an excellent choice for engineers and designers in the electronics industry.
