NTE956

NTE956 Description

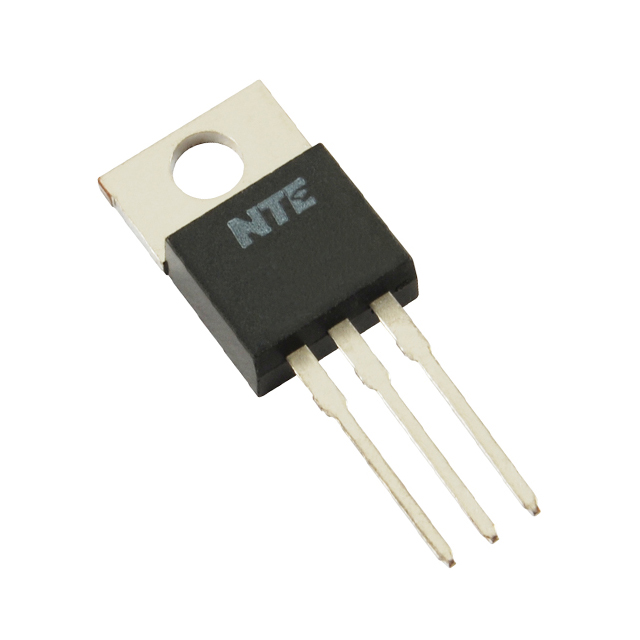

The NTE956 is a high-performance linear voltage regulator designed for a wide range of power management applications. Manufactured by NTE Electronics, Inc., this IC offers adjustable output voltage capabilities, making it highly versatile for various electronic systems. The NTE956 is housed in a Through Hole TO220 package, ensuring robust mechanical stability and efficient heat dissipation.

NTE956 Features

• Operating Temperature Range: The NTE956 operates reliably within a temperature range of 0°C to 125°C (TJ), making it suitable for both standard and high-temperature environments.
• Low Quiescent Current: With a quiescent current (Iq) of just 10 mA, the NTE956 ensures minimal power consumption during standby, enhancing overall system efficiency.
• High PSRR: The regulator boasts a Power Supply Rejection Ratio (PSRR) of 65dB to 80dB at 120Hz, effectively filtering out noise and ripple from the input power supply, thereby ensuring clean and stable output voltage.
• Adjustable Output Voltage: The NTE956 offers an adjustable output voltage range from 1.2V to 37V, providing flexibility to meet diverse power requirements.
• High Output Current: Capable of delivering up to 1.5A of output current, this regulator can support demanding applications requiring significant power.
• Over Current and Over Temperature Protection: Integrated protection features safeguard the regulator and connected components from overcurrent and overtemperature conditions, enhancing reliability and longevity.
• Positive Output Configuration: The NTE956 is designed with a positive output configuration, simplifying circuit design and integration.
• Compliance and Standards: The NTE956 is ROHS3 compliant and classified under ECCN EAR99 and HTSUS 8542.31.0000, ensuring it meets environmental and regulatory standards.

NTE956 Applications

The NTE956 is ideal for a variety of applications where reliable and efficient power regulation is crucial. Its adjustable output voltage and high current capability make it suitable for:

• Consumer Electronics: Powering devices such as smartphones, tablets, and laptops.
• Industrial Equipment: Providing stable power supply for control systems, sensors, and actuators.
• Automotive Systems: Ensuring reliable power management in automotive electronics, including infotainment systems and electronic control units.
• Telecommunications: Supplying power to communication devices and infrastructure, such as routers and switches.
• Medical Devices: Ensuring precise and stable power delivery in medical equipment, enhancing reliability and safety.

Conclusion of NTE956

The NTE956 stands out as a versatile and reliable linear voltage regulator, offering a combination of high performance and flexibility. Its adjustable output voltage, low quiescent current, and high PSRR make it an excellent choice for applications requiring clean and stable power. The integrated protection features further enhance its robustness, making it a preferred solution in demanding environments. Whether for consumer electronics, industrial applications, or automotive systems, the NTE956 delivers consistent performance and reliability, ensuring efficient power management.
