NXP Semiconductors

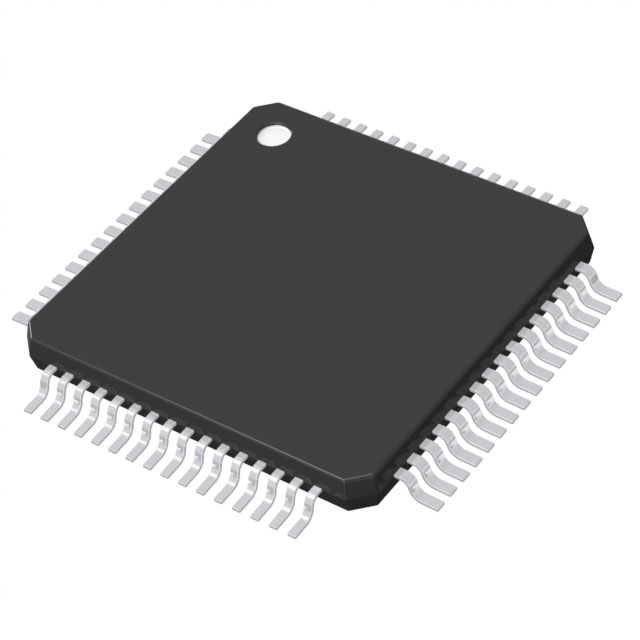

LPC55S66JBD64K

Microcontrollers

The LPC55S66JBD64K is a high-performance microcontroller (MCU) from NXP Semiconductors, designed for a wide range of applications, including industrial control, IoT devices, and automotive systems. It belongs to the LPC5500 series, which is based on the Arm Cortex-M33 processor with TrustZone and Armv8-M architecture.

Description:

The LPC55S66JBD64K is a 64-pin MCU package that offers a combination of high performance, low power consumption, and a rich set of peripherals. It is built on an advanced 40nm process technology, which enables it to deliver excellent performance while maintaining low power consumption.

Features:

1. Processor: Arm Cortex-M33 with TrustZone and Armv8-M architecture, capable of running at up to 200MHz.
2. Memory: 512KB of on-chip SRAM and 640KB of flash memory for program storage.
3. Security: Integrated hardware-based security features, including TrustZone, secure boot, and secure image storage.
4. Connectivity: A wide range of communication interfaces, including USB, I2C, SPI, UART, and CAN.
5. Peripherals: A rich set of peripherals, including ADC, DAC, PWM, I2S, and a variety of timers and counters.
6. Power Management: Advanced power management features, including power scaling, power gating, and a low-power sleep mode.
7. Package: Available in a 64-pin ball grid array (BGA) package.

Applications:

1. Industrial Control: The LPC55S66JBD64K can be used in industrial control applications, such as motor control, sensor interfacing, and human-machine interfaces (HMIs).
2. Internet of Things (IoT): Its low power consumption and connectivity options make it suitable for IoT devices, such as smart home appliances, wearables, and environmental monitoring systems.
3. Automotive Systems: The LPC55S66JBD64K is suitable for automotive applications, including body control modules, infotainment systems, and advanced driver assistance systems (ADAS).
4. Medical Devices: The MCU can be used in medical devices that require precise control and monitoring, such as portable medical instruments and wearable health monitoring devices.
5. Consumer Electronics: It can be used in a variety of consumer electronics, including smart appliances, fitness equipment, and portable electronics.

In summary, the LPC55S66JBD64K is a versatile and powerful MCU from NXP Semiconductors, designed to meet the demands of modern embedded systems. Its advanced features, such as TrustZone security, a wide range of communication interfaces, and low power consumption, make it suitable for a variety of applications across different industries.
