MC33HB2002ES

MC33HB2002ES Description

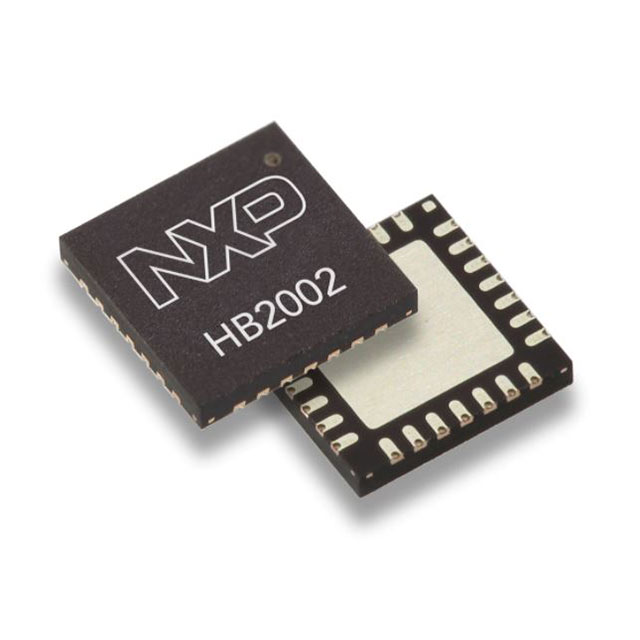

The MC33HB2002ES from NXP Semiconductors is a high-performance dual half-bridge motor driver designed for brushed DC and bipolar stepper motor applications. Operating within a 5V to 28V supply range and delivering up to 10A output current, this CMOS-based driver integrates an SPI interface for precise control and diagnostics. It is automotive-grade, ensuring reliability in harsh environments, and complies with ROHS3 and REACH standards. Packaged in a surface-mount, wettable flank design, it meets stringent assembly requirements while offering enhanced solder joint inspection.

MC33HB2002ES Features

• High-Current Handling: Supports 10A continuous output, ideal for demanding motor control tasks.
• Wide Voltage Range: Operates from 5V to 28V, accommodating diverse power systems.
• SPI Interface: Enables advanced configurability, fault reporting, and real-time adjustments.
• Automotive Compliance: AEC-Q100 qualified, suitable for automotive and industrial applications.
• Robust Protection: Built-in safeguards against overcurrent, overtemperature, and undervoltage.
• Wettable Flank Package: Facilitates automated optical inspection (AOI) for improved manufacturing quality.

MC33HB2002ES Applications

• Automotive Systems: Power window lifts, sunroof controls, and seat adjustment modules.
• Industrial Automation: Conveyor belts, robotic actuators, and precision servo drives.
• Consumer Electronics: High-torque DC motors in appliances and gaming peripherals.
• Medical Devices: Motorized equipment requiring silent, efficient, and reliable operation.

Conclusion of MC33HB2002ES

The MC33HB2002ES stands out for its high current capacity, SPI programmability, and automotive-grade durability, making it a superior choice for brushed DC and stepper motor control. Its wettable flank packaging and integrated protections address modern manufacturing and reliability challenges, positioning it as a versatile solution for automotive, industrial, and consumer applications. Engineers benefit from its flexibility, diagnostic capabilities, and compliance with stringent industry standards.
