NXP Semiconductors

UJA1131HW/3V3Y

Specialized Power Management

UJA1131HW/3V3Y Description

The UJA1131/HW3V3Y is a high-performance IC transceiver designed for robust and reliable communication in automotive applications. Manufactured by NXP Semiconductors, this device is part of the Power Management Integrated Circuit (PMIC) category and is engineered to meet the stringent requirements of the automotive industry.

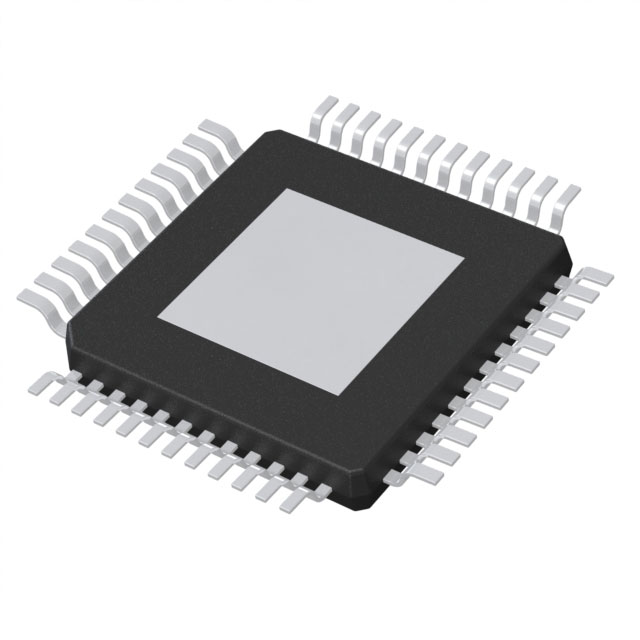

This transceiver features a wide supply voltage range of 2V to 28V, making it suitable for various power supply configurations. It operates a with supply current of 2.8mA, ensuring efficient power usage and minimal energy consumption. The UJA1131HW/3V3Y is available in a Surface Mount package, specifically in Tape & Reel (TR) format, which facilitates easy integration into modern automotive electronic systems.

The device is classified under ECCN EAR99 and is compliant with REACH and ROHS3 standards, ensuring it meets environmental and regulatory requirements. It also has a Moisture Sensitivity Level (MSL) of 3, allowing for a 168-hour exposure period, which is ideal for manufacturing processes involving reflow soldering.

UJA1131HW/3V3Y Features

The UJA1131HW/3V3Y offers several unique features that set it apart from similar models:

• Wide Voltage Range: The ability to operate within a 2V to 28V supply voltage range provides flexibility and compatibility with various power sources.
• Low Supply Current: With supply a current of only 2.8mA, this transceiver ensures minimal power draw, making it ideal for energy-efficient designs.
• Automotive Grade: Certified for automotive use, this transceiver is designed to withstand the harsh conditions and stringent reliability standards required in automotive applications.
• Surface Mount Technology (SMT): The Surface Mount package type facilitates easy integration into compact and high-density PCB designs.
• Compliance and Safety: Compliance with REACH and ROHS3 standards ensures that the device is environmentally friendly and safe for use in regulated industries.
• Moisture Sensitivity Level 3: This rating allows for a 168-hour exposure period, making it suitable for manufacturing processes involving reflow soldering without the risk of moisture-induced damage.

UJA1131HW/3V3Y Applications

The UJA1131HW/3V3Y is ideal for a variety of automotive applications where reliable communication and robust performance are critical. Some specific use cases include:

• In-Vehicle Networking: The wide voltage range and low supply current make it suitable for in-vehicle communication systems, ensuring reliable data transmission.
• Control Modules: Ideal for use in electronic control units (ECUs) where space is limited and power efficiency is paramount.
• Infotainment Systems: The device's automotive-grade reliability and compliance with industry standards make it a perfect fit for infotainment systems that require high performance and durability.
• Safety Systems: The robustness and reliability of the UJA1131HW/3V3Y make it suitable for safety-critical applications such as advanced driver-assistance systems (ADAS).

Conclusion of UJA1131HW/3V3Y

The UJA1131HW/3V3Y is a versatile and reliable IC transceiver designed to meet the demanding requirements of the automotive industry. Its wide voltage range, low supply current, and automotive-grade certification make it an excellent choice for a variety of applications. The device's compliance with environmental and safety standards, along with its moisture sensitivity level, ensures it is suitable for modern manufacturing processes. Whether used in in-vehicle networking, control modules, infotainment systems, or safety-critical applications, the UJA1131/HW3V3Y offers a high-performance solution that stands out in its category.

UJA1131HW/3V3Y Documents

Download datasheets and manufacturer documentation for UJA1131HW/3V3Y

Datasheets :

UJA113xHW

PCN Packaging :

All Dev Label Update 15/Dec/2020       Mult Dev Pkg Seal 15/Dec/2020

PCN Design/Specification :

UJA113x Quality Alert 28/Feb/2022       Multi Design 02/25/2022

Environmental Information :

NXP USA Inc REACH       NXP USA Inc RoHS Cert
