onsemi

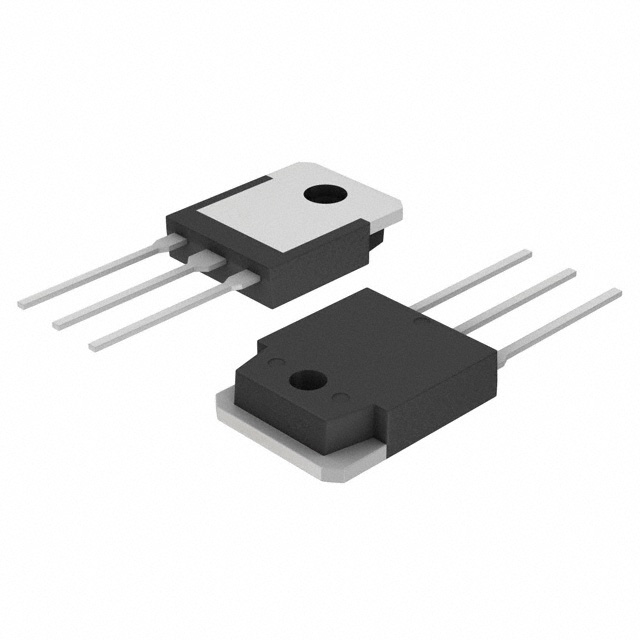

2SK3746
278-2SK3746
PDF Datasheet
2A, 1500V, 13ohm, N-CHANNEL, Si, POWER, MOSFET, TO-3PB, 3 PIN
Why Choose Us?
Professional Platform
B2B & B2C purchasingDelivery at full speed
1-2 days deliveryWide variety
Original manufacturers365 days guarantee
Responsible quality
.png)
Tech Specifications
Continuous Drain Current (ID)
2A
Drain to Source Breakdown Voltage
1.5kV
Drain to Source Resistance
10R
Drain to Source Voltage (Vdss)
1.5kV
Fall Time
59ns
Gate to Source Voltage (Vgs)
20V
Input Capacitance
380pF
Max Operating Temperature
150°C
2SK3746 Description
N-Channel 1500 V 2A (Ta) 2.5W (Ta), 110W (Tc) Through Hole TO-3PB
FAQ
What is the mounting type of 2SK3746?
2SK3746 uses a Through Hole mounting style based on the listed product specifications.
What operating temperature range does 2SK3746 support?
What voltage specification is listed for 2SK3746?
What is 2SK3746?
Is 2SK3746 currently in stock?
