74AC16244SSC

74AC16244SSC Description

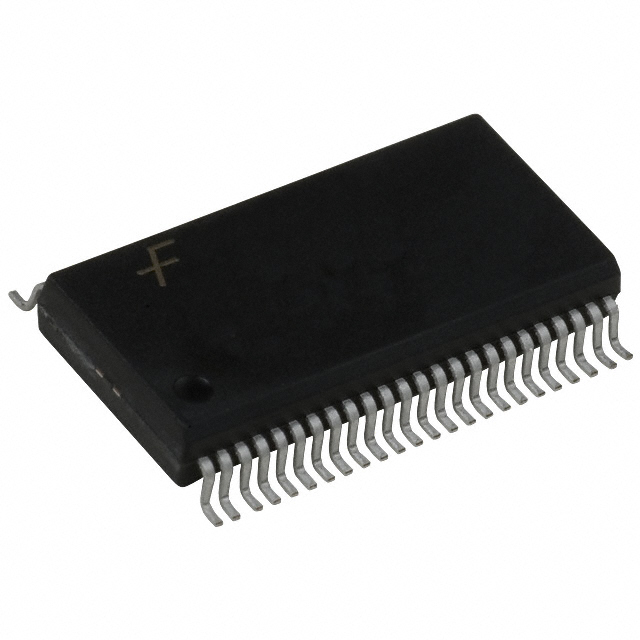

The 74AC16244SSC is a non-inverting buffer Logic IC Chip, part of the 74AC series, manufactured by onsemi. This device is designed for high-speed, low-power applications and is housed in a 48SSOP package. It features four 4-bit non-inverting buffers, providing a total of 16 buffered outputs. The 74AC16244SSC operates over a wide supply voltage range of 2V to 6V, making it versatile for various power supply configurations. Each buffer can drive up to 24mA in both high and low states, ensuring robust performance in demanding environments.

74AC16244SSC Features

• High-Speed Performance: The 74AC16244SSC offers high-speed operation, ideal for applications requiring fast data transmission and processing.
• Low Power Consumption: Despite its high-speed capabilities, the device maintains low power consumption, making it suitable for energy-efficient designs.
• Wide Supply Voltage Range: With a supply voltage range of 2V to 6V, the 74AC16244SSC is adaptable to different power supply requirements.
• High Drive Capability: Each output can drive up to 24mA, ensuring reliable signal integrity and compatibility with a wide range of loads.
• Surface Mount Technology: The surface mount package allows for efficient PCB layout and automated assembly processes.
• Moisture Sensitivity Level 1: The device has an MSL rating of 1 (Unlimited), making it suitable for storage and handling in various environmental conditions.
• REACH Compliance: The 74AC16244SSC is REACH unaffected, ensuring compliance with environmental and safety regulations.

74AC16244SSC Applications

The 74AC16244SSC is ideal for a variety of applications where high-speed, low-power, and high-drive capability are required. Some specific use cases include:

• Digital Signal Processing: The high-speed and low-power characteristics make it suitable for buffering and processing digital signals in communication systems.
• Computer Peripherals: The device can be used in the design of computer peripherals such as printers, scanners, and keyboards, where signal integrity and reliability are crucial.
• Consumer Electronics: In applications such as gaming consoles, smart TVs, and other consumer electronics, the 74AC16244SSC can provide robust buffering solutions.
• Industrial Control Systems: The wide supply voltage range and high drive capability make it ideal for industrial applications where reliability and performance are paramount.

Conclusion of 74AC16244SSC

The 74AC16244SSC is a versatile and high-performance Logic IC Chip that offers significant advantages over similar models. Its combination of high-speed operation, low power consumption, and high drive capability make it an excellent choice for a wide range of applications. The surface mount package and moisture sensitivity level 1 rating ensure ease of integration and reliability in various environments. While the product is now obsolete, its legacy continues to influence the design of modern high-speed, low-power logic circuits.
