onsemi

CAT24C32ZD2I-GT2

CAT24C32ZD2I-GT2 Description

The CAT24C32ZD2I-GT2 is an EEPROM memory IC chip manufactured by onsemi, designed for a wide range of applications requiring reliable non-volatile memory solutions. This 32Kbit EEPROM device is organized as 4K x 8, offering a memory size of 32Kbit with an I2C memory interface. It operates at a clock frequency of 1 MHz, ensuring efficient data transfer rates. The CAT24C32ZD2I-GT2 supports a supply voltage range of 1.7V to 5.5V, making it versatile for various power supply configurations.

This EEPROM IC features an access time of 900 ns and a write cycle time of 5ms for both word and page operations. It is available in a surface mount package, specifically in an 8TDFN format, and is packaged in tape and reel (TR) for easy handling and integration into modern electronic designs. The device is classified under HTSUS code 8542.32.0051 and has a moisture sensitivity level (MSL) of 1 (unlimited), indicating it is suitable for a wide range of environmental conditions.

CAT24C32ZD2I-GT2 Features

• Memory Organization: 4K x 8, providing a total memory size of 32Kbit.
• Memory Interface: I2C, ensuring compatibility with a wide range of microcontrollers and systems.
• Clock Frequency: 1 MHz, enabling efficient data transfer and communication.
• Access Time: 900 ns, ensuring quick read operations.
• Write Cycle Time: 5ms for both word and page operations, ensuring reliable and efficient data writing.
• Voltage Range: 1.7V to 5.5V, offering flexibility in power supply requirements.

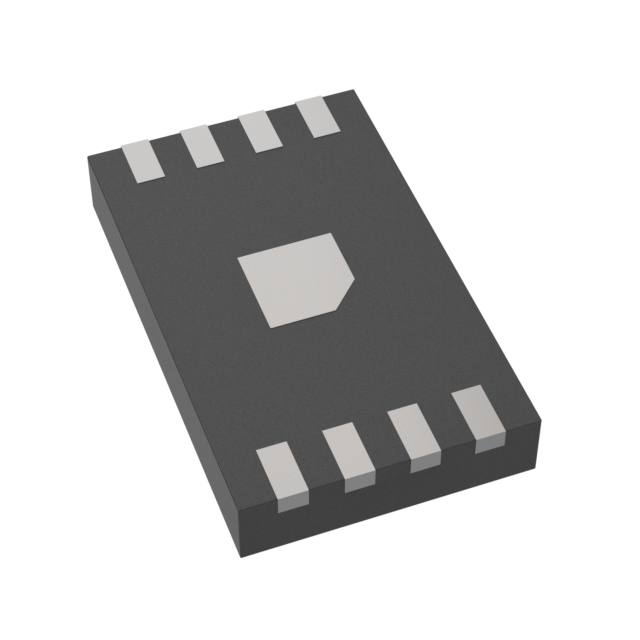

• Package Type: Surface mount 8TDFN, ideal for compact and space-constrained designs.
• Packaging: Tape & Reel (TR), facilitating easy integration into automated assembly processes.
• Moisture Sensitivity Level: MSL 1 (unlimited), ensuring robustness in various environmental conditions.
• Compliance: REACH unaffected, ensuring compliance with environmental regulations.

CAT24C32ZD2I-GT2 Applications

The CAT24C32ZD2I-GT2 is ideal for applications requiring non-volatile memory storage with reliable read and write operations. Its I2C interface and 1 MHz clock frequency make it suitable for systems where data integrity and quick access are critical. Specific use cases include:

• Embedded Systems: Ideal for storing configuration data, calibration parameters, and firmware in embedded devices.
• Industrial Control: Suitable for industrial applications where reliable memory storage is essential for maintaining system settings and operational data.
• Consumer Electronics: Can be used in consumer devices for storing user preferences, settings, and critical system information.
• Automotive Applications: Provides a reliable memory solution for automotive systems, ensuring data integrity and quick access.

Conclusion of CAT24C32ZD2I-GT2

The CAT24C32ZD2I-GT2 is a robust EEPROM memory IC chip that offers a balance of performance, reliability, and versatility. Its 32Kbit memory size, I2C interface, and 1 MHz clock frequency make it suitable for a wide range of applications. The device's quick access time and efficient write cycle time ensure reliable data storage and retrieval. The surface mount package and tape and reel packaging make it easy to integrate into modern electronic designs. While the product is marked as obsolete, it remains a reliable choice for applications where its features and performance are well-suited.
