CAT6219ADJVP5GT4

CAT6219ADJVP5GT4 Description

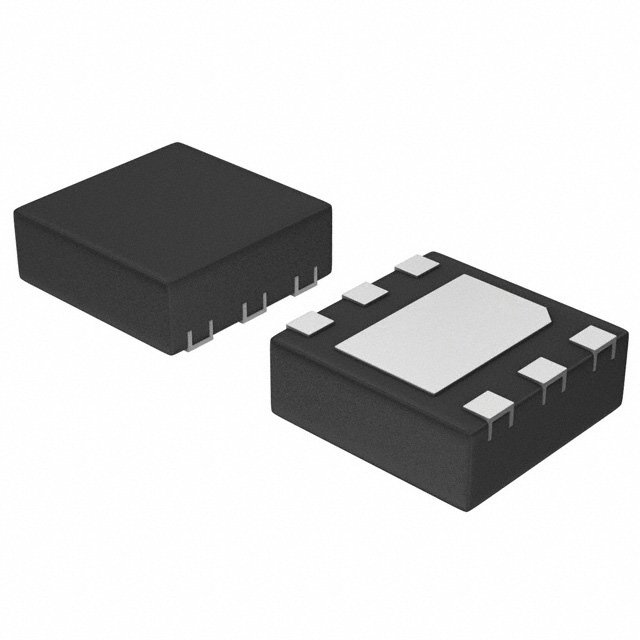

The CAT6219ADJVP5GT4 is a linear positive adjustable regulator designed for high performance and efficiency in power management applications. Manufactured by onsemi, this regulator is part of the Power Management Integrated Circuits (PMIC) category and is housed in a 6-lead thermally enhanced DFN package, suitable for surface mount applications. The CAT6219ADJVP5GT4 offers a wide input voltage range up to 5.5V and can deliver a maximum output current of 500mA. It features a minimum output voltage of 1.25V and a maximum dropout voltage of 0.5V at full load, ensuring efficient operation even at low input-to-output voltage differentials. The regulator is designed with a low quiescent current of 75 µA and a supply current of 90 µA, making it ideal for battery-powered and low-power applications. Additionally, it includes an enable control feature and comprehensive protection mechanisms such as over-current, over-temperature, and under-voltage lockout (UVLO).

CAT6219ADJVP5GT4 Features

• Adjustable Output Voltage: The CAT6219ADJVP5GT4 provides an adjustable output voltage range from 1.25V to 5V, offering flexibility to meet various application requirements.
• High Efficiency: With a maximum dropout voltage of 0.5V at 500mA, this regulator ensures high efficiency, especially in applications where the input voltage is close to the desired output voltage.
• Low Quiescent Current: The regulator operates with a low quiescent current of 75 µA, which is crucial for extending battery life in portable devices.
• Enable Control: The enable feature allows for dynamic control of the regulator, enabling power savings and efficient power management.
• Protection Features: Comprehensive protection features including over-current, over-temperature, and under-voltage lockout ensure reliable operation and protect the regulator and downstream components from damage.
• Surface Mount Compatibility: The 6TDFN package is suitable for surface mount technology (SMT), making it ideal for compact and high-density PCB designs.
• High Power Supply Rejection Ratio (PSRR): The regulator offers a PSRR of 64dB at 1kHz and 54dB at 20kHz, ensuring minimal noise and ripple in the output voltage.
• Moisture Sensitivity Level (MSL): The MSL rating of 1 (unlimited) indicates that the device is not moisture sensitive, simplifying handling and storage requirements.

CAT6219ADJVP5GT4 Applications

The CAT6219ADJVP5GT4 is well-suited for a variety of applications that require efficient power management and high performance. Some specific use cases include:

• Portable Devices: Ideal for battery-powered devices such as smartphones, tablets, and wearables where low quiescent current and high efficiency are critical.
• Consumer Electronics: Suitable for applications like digital cameras, media players, and other consumer electronics that demand reliable power regulation.
• Industrial Equipment: Can be used in industrial control systems, sensors, and other equipment where precise voltage regulation and protection features are necessary.
• Telecommunications: Applicable in base stations, routers, and other telecom equipment where high efficiency and low noise are essential for stable operation.
• Automotive Electronics: Useful in automotive applications such as infotainment systems, electronic control units, and other automotive electronics that require robust power management solutions.

Conclusion of CAT6219ADJVP5GT4

The CAT6219ADJVP5GT4 from onsemi is a versatile and efficient linear regulator that offers a wide range of features and benefits for power management applications. Its adjustable output voltage, low dropout voltage, low quiescent current, and comprehensive protection features make it an ideal choice for a variety of applications, from portable devices to industrial equipment. Despite its obsolete status, the CAT6219ADJVP5GT4 remains a reliable and high-performance solution for designers seeking efficient power regulation in their systems.
