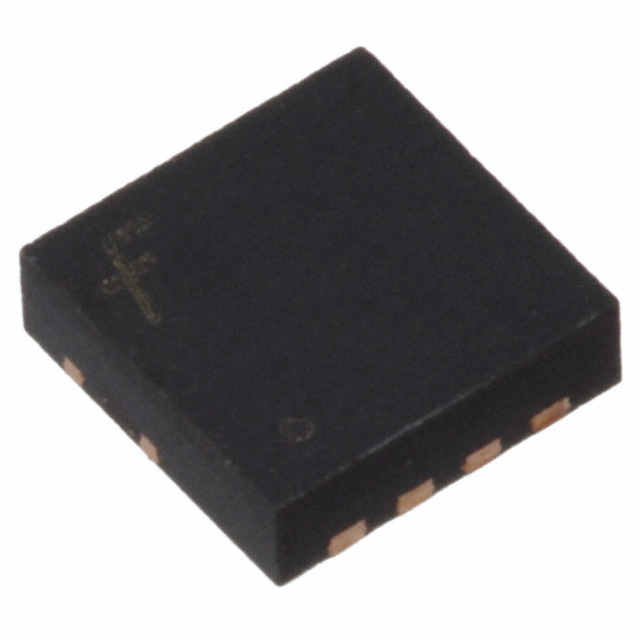

FDMC7660S

FDMC7660S Description

The FDMC7660S is a high-performance N-Channel MOSFET designed for power electronics applications. Manufactured by onsemi, this MOSFET offers superior performance and reliability. With a drain-source voltage (Vdss) of 30V and continuous drain current (Id) ratings of 20A at 25°C and 40A at Tc, the FDMC7660S is ideal for demanding power management tasks. Its low on-resistance (Rds On) of 2.2mOhm at 20A and 10V ensures efficient power dissipation, with a maximum power dissipation of 2.3W at Ta and 41W at Tc.

FDMC7660S Features

• Technology: Advanced MOSFET (Metal Oxide) technology
• Input Capacitance (Ciss): 4325 pF at 15V
• Gate Charge (Qg): 66 nC at 10V
• Vgs (Max): ±20V
• Rds On (Max): 2.2mOhm at 20A and 10V
• Vgs(th) (Max): 2.5V at 1mA
• Series: PowerTrench®, SyncFET™
• Mounting Type: Surface Mount
• Package: Power33
• REACH Status: REACH Unaffected
• RoHS Status: ROHS3 Compliant
• Moisture Sensitivity Level (MSL): 1 (Unlimited)

FDMC7660S Applications

The FDMC7660S is well-suited for a variety of power electronics applications, including:

1. Power Management: Its high current and voltage ratings make it ideal for power supply designs.
2. Motor Control: The low Rds On and high current ratings are beneficial for motor control applications.
3. Automotive Electronics: The robust design and high power dissipation capabilities make it suitable for automotive electronics.
4. Industrial Control: The FDMC7660S can be used in various industrial control applications due to its high reliability and performance.

Conclusion of FDMC7660S

The FDMC7660S from onsemi is a powerful and reliable N-Channel MOSFET designed for demanding power electronics applications. Its advanced technology, low on-resistance, and high current and voltage ratings make it an excellent choice for power management, motor control, automotive electronics, and industrial control applications. With its unique features and advantages over similar models, the FDMC7660S offers superior performance and reliability, making it a top choice for engineers and designers in the electronics industry.
