onsemi

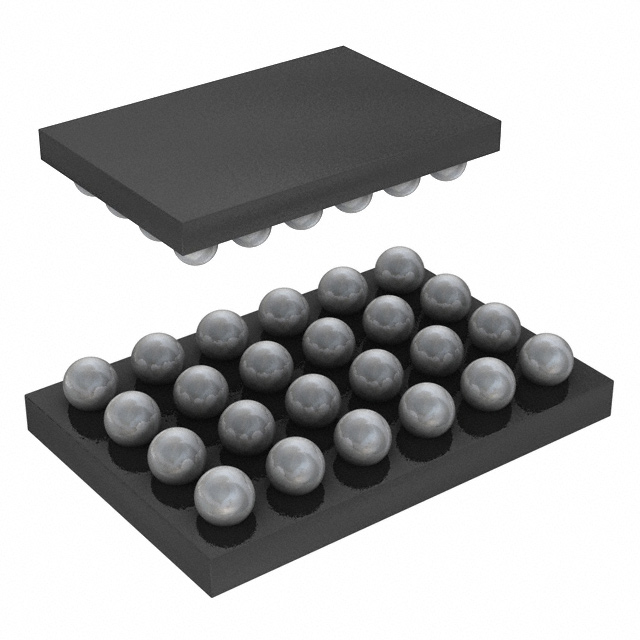

FPF2895VUCX

FPF2895VUCX Description

The FPF2895VUCX is a high-side current limit switch designed for automotive applications, offering robust performance and reliability. Manufactured by onsemi, this device is part of the Power Distribution Switches and Load Drivers category. It features a high-side output configuration with a maximum output current of 5A, making it suitable for demanding applications that require efficient power distribution.

The FPF2895VUCX operates within a load voltage range of 4V to 22V, ensuring compatibility with a wide range of automotive systems. Its 1:1 input-to-output ratio and low Rds On (Typ) of 27mOhm ensure minimal power loss and high efficiency. The device is housed in a surface-mount package, specifically Tape & Reel (TR), which facilitates easy integration into modern automotive electronics.

FPF2895VUCX Features

The FPF2895VUCX boasts several unique features that set it apart from similar models. It includes auto-restart functionality and a status flag, providing enhanced control and monitoring capabilities. The device is equipped with comprehensive fault protection mechanisms, including adjustable current limiting, over-temperature protection, over-voltage protection, reverse current protection, and under-voltage lockout (UVLO). These features ensure reliable operation and safeguard against various fault conditions.

The FPF2895VUCX is REACH unaffected and RoHS3 compliant, meeting stringent environmental and regulatory standards. Its moisture sensitivity level (MSL) is rated at 1 (Unlimited), making it suitable for a wide range of manufacturing environments. The device is classified under ECCN EAR99 and HTSUS 8542.39.0001, ensuring compliance with international trade regulations.

FPF2895VUCX Applications

The FPF2895VUCX is ideal for automotive applications where high reliability and robust performance are critical. Its automotive grade certification ensures it meets the stringent requirements of the automotive industry. Specific use cases include:

• Automotive Power Distribution: The device's high-side configuration and 5A maximum output current make it suitable for managing power distribution in automotive systems.
• Load Drivers: The FPF2895VUCX can drive various loads efficiently, thanks to its low Rds On and wide operating voltage range.
• Fault-Tolerant Systems: The comprehensive fault protection features make it ideal for applications where system reliability and safety are paramount.

Conclusion of FPF2895VUCX

The FPF2895VUCX is a versatile and reliable current limit switch designed for automotive applications. Its high-side output configuration, robust fault protection, and compliance with environmental and regulatory standards make it an excellent choice for modern automotive electronics. The device's unique features, such as auto-restart and status flag, provide enhanced control and monitoring capabilities, ensuring optimal performance and reliability. Whether used in power distribution systems or as a load driver, the FPF2895VUCX delivers the performance and durability required for demanding automotive applications.
