FPP06R001

FPP06R001 Description

The FPP06R001 is a programmable forward converter full bridge regulator designed for high-performance power management applications. Manufactured by onsemi, this IC offers a robust solution for managing power in various electronic systems. It features a programmable output type, allowing for flexibility in voltage and current settings. The input voltage range is from 5V to 20V, and it can deliver a maximum output current of 40A. The output configuration is positive and isolation capable, making it suitable for applications requiring high reliability and safety.

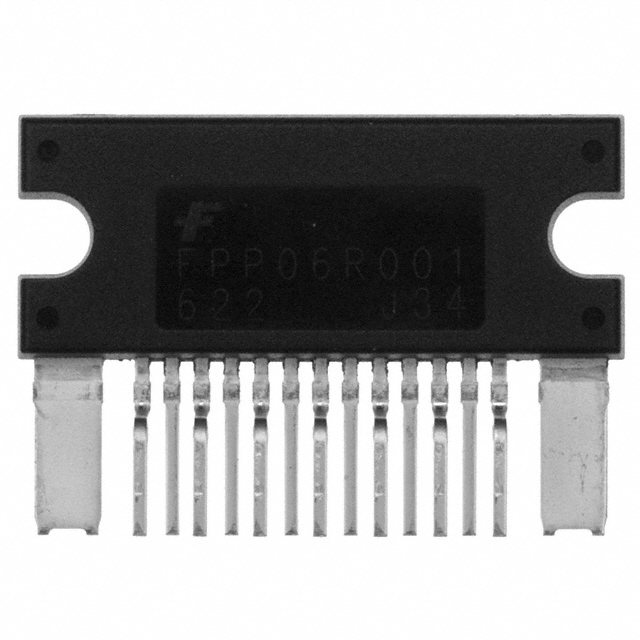

The FPP06R001 is housed in an EPM15 package, which is designed for through-hole mounting. This package type ensures mechanical stability and ease of integration into existing circuit boards. The regulator supports a synchronous rectifier, enhancing efficiency and reducing power loss. The output voltage is programmable between 5V and 12V, providing a wide range of voltage options to meet different application requirements.

FPP06R001 Features

• Programmable Output Type: The FPP06R001 offers a programmable output voltage range from 5V to 12V, providing flexibility to adapt to various power requirements.
• Wide Input Voltage Range: It supports an input voltage range of 5V to 20V, making it suitable for a variety of power sources.
• High Output Current: Capable of delivering up to 40A of output current, ensuring sufficient power for demanding applications.
• Positive and Isolation Capable Output Configuration: This feature enhances safety and reliability, especially in applications where isolation is critical.
• Synchronous Rectifier: The inclusion of a synchronous rectifier improves efficiency by reducing power loss, contributing to better overall system performance.
• Forward Converter Full Bridge Topology: This topology ensures high efficiency and stable power delivery, making it ideal for high-power applications.
• Through Hole Mounting: The EPM15 package supports through-hole mounting, ensuring mechanical stability and ease of integration.
• Moisture Sensitivity Level (MSL) 1: This rating indicates unlimited exposure to moisture, enhancing the product's durability in various environmental conditions.
• REACH Unaffected: The FPP06R001 complies with REACH regulations, ensuring it is free from harmful substances and suitable for global markets.

FPP06R001 Applications

The FPP06R001 is ideal for applications requiring high power efficiency and flexibility in voltage and current settings. Some specific use cases include:

• Industrial Equipment: High-power industrial machinery that requires stable and efficient power delivery.
• Telecommunications: Powering communication infrastructure equipment where reliability and efficiency are paramount.
• Automotive Systems: Suitable for automotive applications where high current and voltage flexibility are necessary.
• Renewable Energy Systems: Ideal for solar inverters and other renewable energy applications requiring efficient power conversion.
• Medical Devices: Powering medical equipment where isolation and reliability are critical.

Conclusion of FPP06R001

The FPP06R001 is a versatile and efficient power management IC designed to meet the demands of high-power applications. Its programmable output type, wide input voltage range, and high output current make it a flexible solution for various electronic systems. The inclusion of a synchronous rectifier and forward converter full bridge topology ensures high efficiency and stable power delivery. While the product is marked as obsolete, its robust features and compliance with industry standards make it a reliable choice for existing and legacy systems.
