FSA2257L10X

FSA2257L10X Description

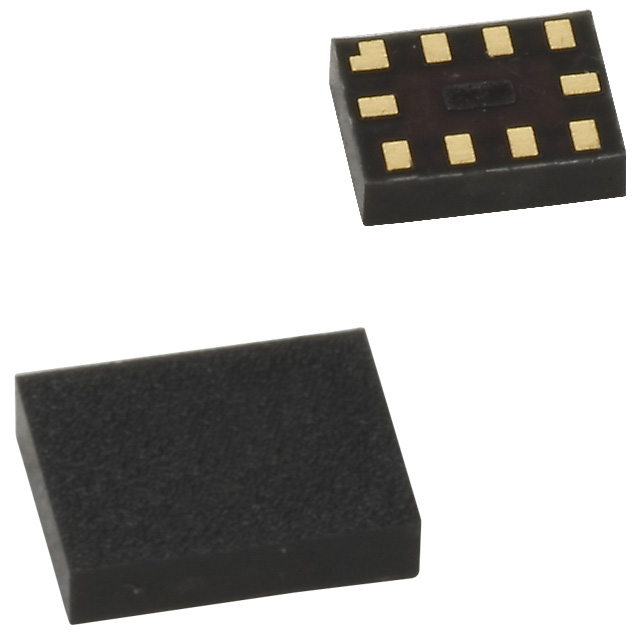

The FSA2257L10X is a high-performance, surface-mount SPDT (Single Pole Double Throw) switch IC designed by onsemi. This interface IC chip offers exceptional electrical characteristics and is suitable for a wide range of applications requiring reliable signal switching. It features a maximum on-state resistance (Ron) of 1.15Ohm, ensuring minimal power loss and high efficiency. The device operates within a supply voltage range of 1.65V to 5.5V, making it versatile for various power supply configurations.

FSA2257L10X Features

• Low Leakage Current: The FSA2257L10X boasts a maximum leakage current (IS(off)) of just 2nA, which is crucial for maintaining signal integrity and reducing power consumption in low-power applications.
• High Channel Matching: With a channel-to-channel matching (ΔRon) of 60mOhm, this IC ensures consistent performance across multiple channels, making it ideal for applications requiring precise signal switching.
• Fast Switching Times: The switch time (Ton, Toff) is maximized at 35ns and 15ns respectively, enabling rapid signal transitions and high-speed operation.
• Wide Bandwidth: The -3dB bandwidth of 200MHz supports high-frequency signal switching, making it suitable for applications in communication and signal processing.
• Low Charge Injection: At just 10pC, the charge injection is minimized, which helps in maintaining signal fidelity and reducing transient effects.
• Low Channel Capacitance: The channel capacitance (CS(off), CD(off)) is 12pF, ensuring minimal signal distortion and high switching efficiency.
• Compliance and Packaging: The FSA2257L10X is REACH unaffected and RoHS3 compliant, adhering to stringent environmental and safety standards. It is available in a Tape & Reel (TR) package, facilitating easy handling and integration into automated assembly processes.

FSA2257L10X Applications

The FSA2257L10X is ideal for applications that demand high reliability and performance in signal switching. Its low on-state resistance and fast switching times make it suitable for:

• Communication Systems: High-speed data transmission and signal routing in telecommunication equipment.
• Consumer Electronics: Audio and video signal switching in devices such as smartphones, tablets, and multimedia systems.
• Industrial Control: Signal switching in industrial automation and control systems where precision and reliability are critical.
• Medical Devices: Signal routing in medical imaging and diagnostic equipment, ensuring accurate and reliable signal transmission.

Conclusion of FSA2257L10X

The FSA2257L10X from onsemi is a robust and versatile SPDT switch IC designed to meet the demands of modern electronic systems. Its low leakage current, high channel matching, and fast switching times make it a standout choice for applications requiring high performance and reliability. The wide bandwidth and low charge injection further enhance its suitability for high-frequency and sensitive signal applications. Despite being marked as obsolete, the FSA2257L10X remains a reliable option for engineers and designers looking for a high-quality switch IC.
