FSCQ1565RTYDTU

FSCQ1565RTYDTU Description

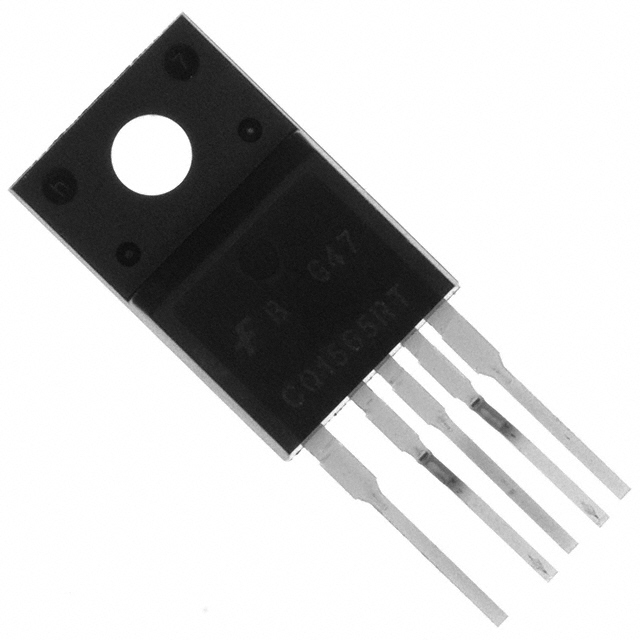

The FSCQ1565RTYDTU is an offline switch IC designed for flyback topology applications, offering a robust and efficient solution for AC-DC conversion. Manufactured by onsemi, this device is part of the FSCQ series and is housed in a Through Hole package, specifically the TO220F-5L format. Despite being marked as obsolete, the FSCQ1565RTYDTU remains a reliable choice for various power conversion needs.

FSCQ1565RTYDTU Features

• High Power Capability The: FSCQ1565RTYDTU is capable of delivering up to 210 watts of power, making it suitable for high-power applications.
• Wide Input Voltage Range: It operates within a supply voltage range of 9V to 20V, ensuring compatibility with a variety of input sources.
• High Breakdown Voltage: With a breakdown voltage of 650V, this IC can handle high-voltage applications with ease.
• Efficient Switching: The device features a switching frequency of 20kHz, which contributes to its high efficiency and reduced power loss.
• Enhanced Safety and Protection: The FSCQ1565RTYDTU includes comprehensive fault protection mechanisms such as current limiting, over-load, over-temperature, and over-voltage protection, ensuring reliable operation under various conditions.
• Synchronization Capability: The inclusion of synchronization features helps in reducing electromagnetic interference (EMI) and improving overall system performance.
• Regulatory Compliance: The device is REACH unaffected and RoHS3 compliant, adhering to stringent environmental and safety standards.
• Isolated Output: The output isolation ensures safe and stable power delivery, making it suitable for applications where galvanic isolation is required.

FSCQ1565RTYDTU Applications

The FSCQ1565RTYDTU is ideal for a range of applications due to its high power capability, wide input voltage range, and robust protection features. Key applications include:

• Power Supplies: Ideal for high-power AC-DC power supplies in industrial and consumer electronics.
• Adapters and Chargers: Suitable for high-power adapters and chargers that require efficient power conversion.
• Telecommunications: Can be used in telecom equipment where reliable power delivery and high efficiency are critical.
• Medical Devices: The isolated output and comprehensive protection features make it suitable for medical devices that require stringent safety standards.

Conclusion of FSCQ1565RTYDTU

The FSCQ1565RTYDTU, despite being marked as obsolete, remains a versatile and reliable offline switch IC for high-power AC-DC conversion applications. Its wide input voltage range, high breakdown voltage, and comprehensive protection features make it a robust choice for various power conversion needs. The device's synchronization capability and regulatory compliance further enhance its suitability for modern systems electronic. While newer alternatives may be available, the FSCQ1565RTYDTU continues to offer a proven solution for engineers and designers seeking efficient and reliable power conversion.
