onsemi

MC74HCU04ADR2G

Gates and Inverters

MC74HCU04ADR2G Description

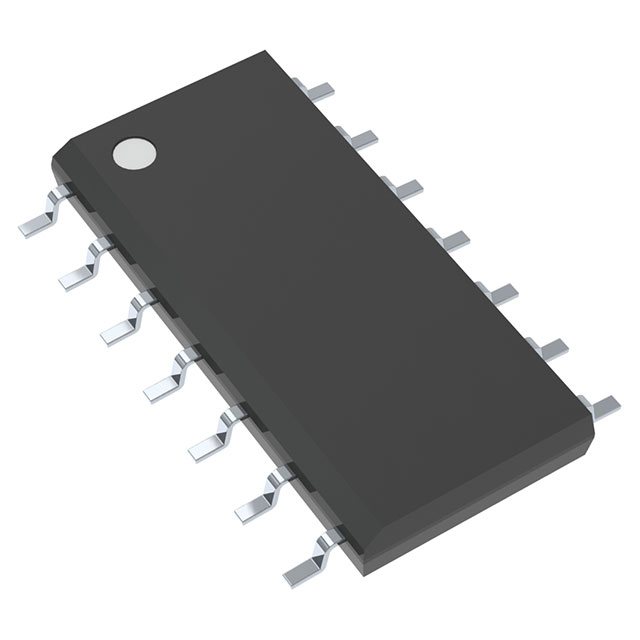

The MC74HCU04ADR2G is a high-performance inverter integrated circuit (IC) from the 74HCU series, manufactured by onsemi. It features a 14-SOIC package, making it suitable for surface-mount applications. This IC is designed to provide excellent performance in terms of propagation delay and power consumption, making it ideal for various digital logic applications.

MC74HCU04ADR2G Features

• Logic Type: Inverter, providing a simple yet essential function in digital circuits.
• Max Propagation Delay: 12ns @ 6V, 50pF, ensuring fast switching times for high-speed applications.
• Voltage - Supply: 2V ~ 6V, offering flexibility in power supply requirements.
• Input Logic Levels: Low (0.3V ~ 1.1V) and High (1.7V ~ 4.8V), accommodating a wide range of input voltages.
• Current - Quiescent (Max): 1 µA, contributing to low power consumption in standby mode.
• Current - Output High, Low: 5.2mA each, providing sufficient current drive for downstream devices.
• Number of Inputs: 1, simplifying the design of digital circuits.
• Number of Circuits: 6, allowing for multiple inverter functions in a single package.
• Mounting Type: Surface Mount, suitable for modern PCB designs.
• Package: Tape & Reel (TR), facilitating automated assembly processes.
• RoHS Status: ROHS3 Compliant, ensuring environmental responsibility.
• REACH Status: REACH Unaffected, adhering to European chemical regulations.
• Moisture Sensitivity Level (MSL): 1 (Unlimited), indicating no special handling required for moisture protection.

MC74HCU04ADR2G Applications

The MC74HCU04ADR2G is ideal for various applications where low power consumption, fast switching, and reliable performance are critical. Some specific use cases include:

1. Digital Logic Circuits: As a fundamental building block for designing complex digital systems.
2. Signal Conditioning: For level shifting or signal inversion in communication and control systems.
3. Automotive Electronics: In control modules and sensor interfaces, where reliability and low power are essential.
4. Industrial Automation: In control panels and process control systems, where robustness and performance are required.

Conclusion of MC74HCU04ADR2G

The MC74HCU04ADR2G is a versatile and high-performance inverter IC that offers a combination of fast switching, low power consumption, and a compact 14-SOIC package. Its unique features, such as a wide voltage range, low quiescent current, and multiple inverter circuits in a single package, make it an excellent choice for a wide range of digital logic applications. With its RoHS compliance and REACH unaffected status, the MC74HCU04ADR2G is not only a technically superior choice but also an environmentally responsible one.

MC74HCU04ADR2G Documents

Download datasheets and manufacturer documentation for MC74HCU04ADR2G

PCN :

General Announcement - 2D Barcoding (PDF)       Temporary Suspension of ISO 9001 Certification for Hitachi Chemical Co., Ltd.       Product Change Notification (PDF)
