NB100EP223FAG Description

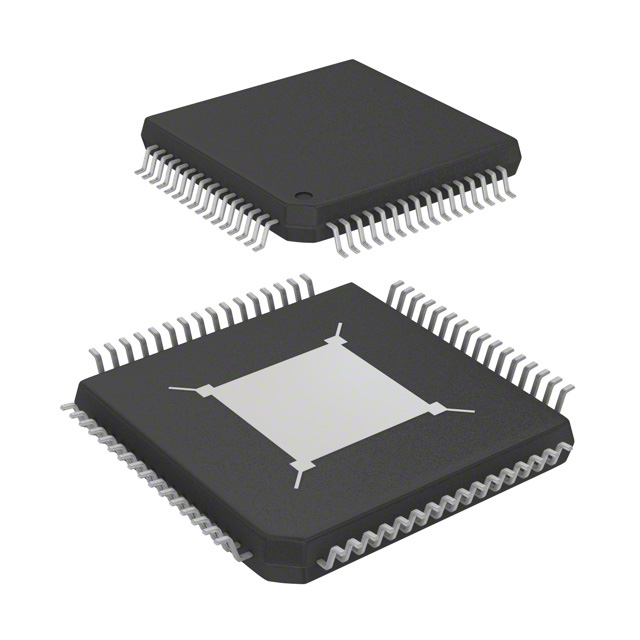

The NB100EP223FAG is a high-performance clock buffer and multiplexer designed for demanding clock distribution applications. Manufactured by onsemi, this device is part of the 100EP series and is housed in a 64LQFP package. It features a 2:22 fanout ratio, capable of distributing clock signals across multiple channels with minimal skew and jitter. The NB100EP223FAG operates within a temperature range of 0°C to 85°C and supports a supply voltage of 3V to 3.6V, making it suitable for a variety of industrial and commercial applications.

NB100EP223FAG Features

• High Fanout Ratio: The 2:22 input-to-output ratio allows for efficient distribution of clock signals, reducing the need for multiple clock sources andifying simpl circuit design.
• Differential Signaling: Supports differential signaling (HSTL, LVDS, LVPECL for) both input and output, ensuring high signal integrity and reduced electromagnetic interference (EMI).
• Wide Operating Frequency Range: With a maximum operating frequency of 500 MHz, the NB100EP223FAG can handle high-speed clock signals, it making ideal for high-performance computing and communication systems.
• Surface Mount Technology: The surface mount package type facilitates easy integration into compact and high-density PCB designs.
• Obsolete Status: While the NB100EP223FAG is marked as obsolete, it remains a reliable choice for legacy systems and applications where its specific features are required.
• Compliance and Safety: The device is REACH unaffected and classified under ECCN EAR99, ensuring compliance with international regulations and safety standards.

NB100EP223FAG Applications

The NB100EP223FAG is well-suited for applications requiring high-speed clock distribution and signal integrity. Some specific use cases include:

• High-Performance Computing: Distributing clock signals across multiple processors and memory modules to ensure synchronized operation.
• Telecommunications: Providing reliable clock distribution in base stations and network equipment to maintain signal integrity over long distances.
• Industrial Automation: Ensuring precise timing in control systems and robotic applications where high-speed data processing is critical.
• Data Centers: Facilitating efficient clock distribution in server racks and storage systems to enhance overall system performance.

Conclusion of NB100EP223FAG

The NB100EP223FAG is a robust and versatile clock buffer and multiplexer that offers significant advantages in high-speed clock distribution applications. Its high fanout ratio, differential signaling capabilities, and wide operating frequency range make it an ideal solution for demanding environments. Despite its obsolete status, the NB100EP223FAG remains a reliable choice for legacy systems and applications where its unique features are essential. For engineers and designers seeking a high-performance clock distribution solution, the NB100EP223FAG is a proven and effective option.
