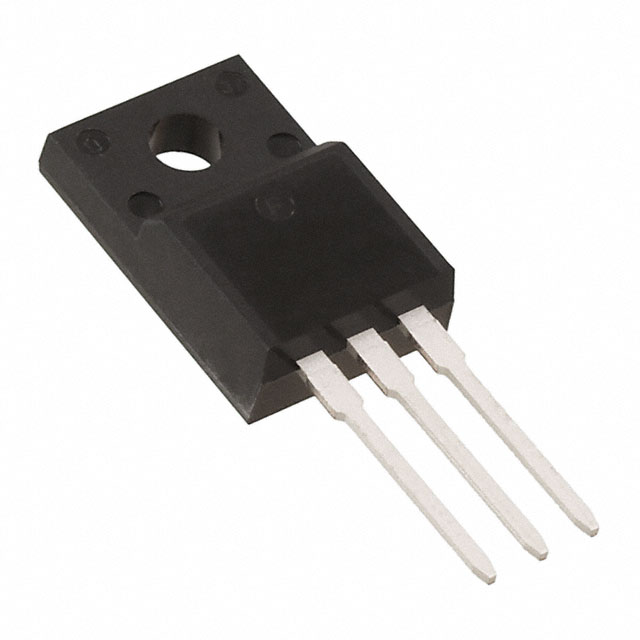

NDFP03N150CG

The NDFP03N150CG is a high voltage N-channel MOSFET from ON Semiconductor. It is designed for use in high voltage applications, such as switch mode power supplies (SMPS), motor control, and power conversion.

Description:

The NDFP03N150CG is a N-channel enhancement mode field effect transistor. It is a 3rd generation superfast diode with a maximum repetitive reverse voltage (VRRM) of 1500V and a continuous current rating (IDM) of 2.3A. It has a fast switching speed and low on-state resistance (RDS(on)) of 2.8 mOhm maximum at a gate-source voltage (VGS) of 10V.

Features:

• High voltage capability: The NDFP03N150CG can handle high voltages up to 1500V, making it suitable for use in high voltage applications.
• Low on-state resistance: The low RDS(on) of the NDFP03N150CG allows for efficient power transfer and reduces power dissipation in the device.
• Fast switching speed: The NDFP03N150CG has a fast switching speed, which allows for high frequency operation and improved efficiency in switch mode power supplies.
• High temperature operation: The NDFP03N150CG can operate in temperatures up to 175°C, making it suitable for use in harsh environments.

Applications:

• Switch mode power supplies (SMPS)
• Motor control
• Power conversion
• High voltage switching applications
• Inverters
• DC-DC converters
• Industrial control systems

Overall, the NDFP03N150CG is a high performance MOSFET that offers high voltage capability, low on-state resistance, and fast switching speed, making it an ideal choice for a wide range of high voltage applications.
