NDTL03N150CG

NDTL03N150CG Description

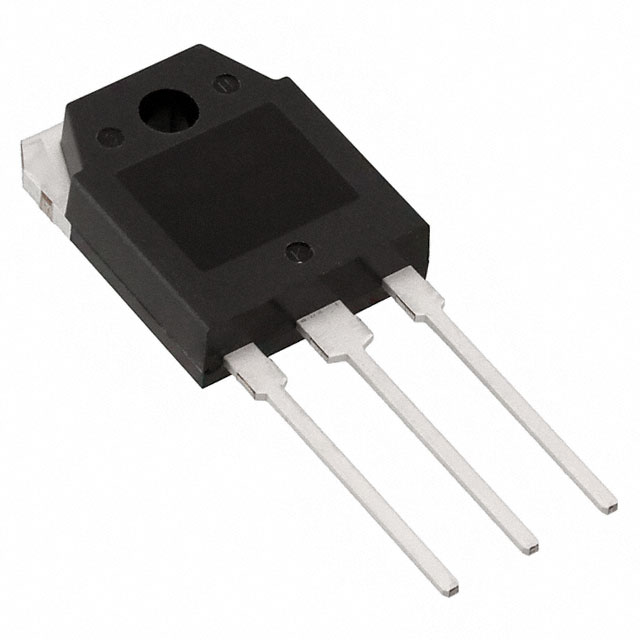

The NDTL03N150CG from onsemi is a high-voltage N-channel MOSFET designed for demanding power applications. With a drain-to-source voltage (Vdss) of 1500V and a continuous drain current (Id) of 2.5A, this device is optimized for high-efficiency switching in industrial and automotive systems. Its low on-resistance (Rds(on)) of 10.5Ω at 10V gate drive ensures minimal conduction losses, while the maximum power dissipation of 140W (Tc) allows for robust thermal performance in high-power environments. Packaged in a TO-3P form factor, it is suitable for through-hole mounting, offering mechanical durability and efficient heat dissipation.

NDTL03N150CG Features

• High Voltage Rating: 1500V Vdss for use in high-power circuits.
• Low Gate Charge (Qg): 34nC at 10V, enabling fast switching and reduced drive losses.
• Wide Operating Temperature: Up to 150°C (TJ) for reliable performance in harsh conditions.
• Low Input Capacitance (Ciss): 650pF at 30V, minimizing switching delays.
• RoHS3 & REACH Compliant: Environmentally friendly and meets global regulatory standards.
• High Power Handling: 140W (Tc) dissipation capability for sustained high-load operation.

NDTL03N150CG Applications

This MOSFET is ideal for:

• Switched-Mode Power Supplies (SMPS): High-voltage DC-DC converters and inverters.
• Industrial Motor Drives: Efficient control in high-voltage motor applications.
• Renewable Energy Systems: Solar inverters and wind power converters requiring high breakdown voltage.
• Automotive Power Modules: Electric vehicle (EV) charging systems and traction inverters.
• High-Voltage Lighting: Ballasts and LED drivers where reliability is critical.

Conclusion of NDTL03N150CG

The NDTL03N150CG is a high-performance MOSFET tailored for high-voltage, high-efficiency applications. Its low Rds(on), fast switching characteristics, and robust thermal management make it a superior choice for power electronics designers. While marked as obsolete, its specifications remain competitive for legacy or specialized systems requiring 1500V operation. For engineers seeking reliability in industrial, automotive, or renewable energy applications, this MOSFET delivers proven performance in a durable TO-3P package.
