NVMFSC0D9N04CL

NVMFSC0D9N04CL Description

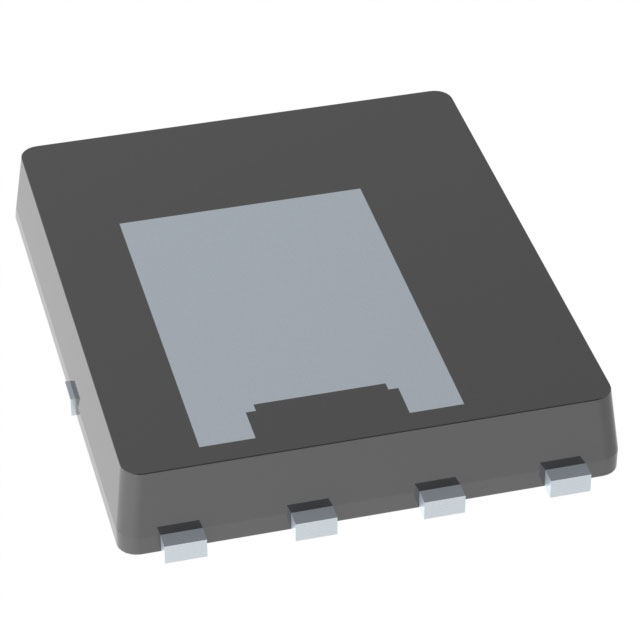

The NVMFSC0D9N04CL is a high-performance MOSFET (Metal Oxide) device from onsemi, designed for automotive applications. This N-Channel MOSFET features a 40V drain-to-source voltage (Vdss) and can handle continuous drain currents of up to 50A at 25°C ambient temperature and 316A at case temperature. The device is offered in an 8-pin DFN package, making it suitable for surface-mount applications.

NVMFSC0D9N04CL Features

• Input Capacitance (Ciss): The maximum input capacitance is 6100 pF at a drain-source voltage (Vds) of 25V.
• Gate Charge (Qg): The maximum gate charge is 86 nC at a gate-source voltage (Vgs) of 10V.
• Drain to Source Voltage (Vdss): 40V, suitable for applications requiring high voltage handling.
• Power Dissipation: Maximum power dissipation is 4.1W at ambient temperature (Ta) and 166W at case temperature (Tc).
• Rds On (Max): The maximum on-state resistance (Rds(on)) is 0.87mOhm at a drain current (Id) of 50A and a gate-source voltage (Vgs) of 10V.
• Vgs(th) (Max): The maximum threshold voltage (Vgs(th)) is 3.5V at a drain current (Id) of 250µA.
• Current - Continuous Drain (Id): 50A at 25°C ambient temperature and 316A at case temperature.
• Drive Voltage: The maximum drive voltage is 10V, ensuring efficient operation.
• Mounting Type: Surface Mount, suitable for compact designs.
• Package: Tape & Reel (TR)

NVMFSC0D9N04CL Applications

The NVMFSC0D9N04CL is ideal for a variety of automotive applications, including:

• Battery Management Systems: Its high voltage and current ratings make it suitable for managing battery charging and discharging.
• Motor Control: The device's low on-state resistance and high current capability make it suitable for electric motor control applications.
• Power Management: Its ability to handle high power dissipation makes it ideal for power management systems in vehicles.
• Automotive Lighting: The device can be used in high-power lighting systems, such as LED headlights and taillights.

Conclusion of NVMFSC0D9N04CL

The NVMFSC0D9N04CL from onsemi is a high-performance MOSFET designed for automotive applications. Its unique combination of high voltage, current, and power dissipation capabilities, along with its compact 8-pin DFN package, make it an ideal choice for a wide range of automotive systems. With its robust performance and compliance with automotive standards, the NVMFSC0D9N04CL is a reliable solution for demanding automotive applications.
