onsemi

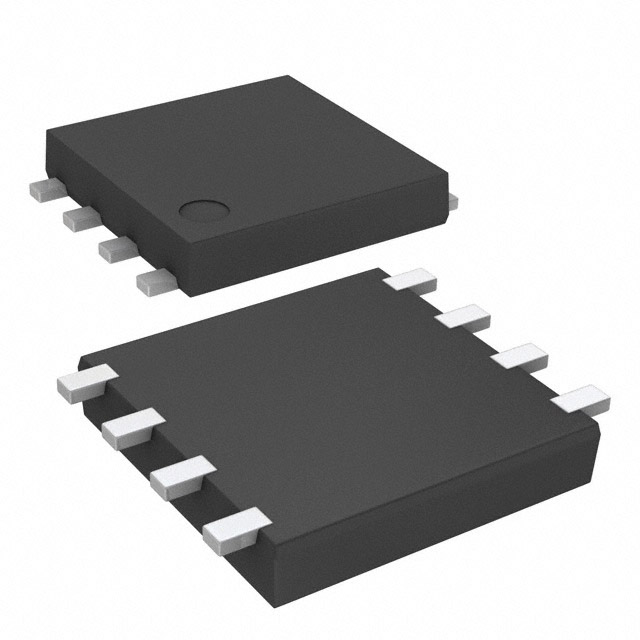

VEC2415-TL-W

VEC2415-TL-W Description

The VEC2415-TL-W is a MOSFET (Metal Oxide) device from onsemi, designed to provide high performance in a variety of electronic applications. This 2N-channel device is capable of handling a continuous drain current of 3A at 25°C and can withstand a drain-to-source voltage of up to 60V. With a maximum power rating of 1W, the VEC2415-TL-W is well-suited for applications requiring efficient power management.

VEC2415-TL-W Features

• Operating Temperature: The VEC2415-TL-W can operate at a maximum junction temperature (TJ) of 150°C, ensuring reliable performance in a wide range of environments.
• FET Feature: This device features a logic level gate with a 4V drive, making it compatible with most logic level inputs.
• Input Capacitance (Ciss): The maximum input capacitance is 505pF at 20V, ensuring fast switching and minimal signal degradation.
• Gate Charge (Qg): The maximum gate charge is 10nC at 10V, contributing to the device's overall efficiency and performance.
• Rds On (Max): The maximum on-resistance is 80mOhm at 1.5A and 10V, providing low power dissipation and high efficiency.
• Vgs(th) (Max): The maximum threshold voltage is 2.6V at 1mA, ensuring reliable switching performance.
• Mounting Type: The VEC2415-TL-W is surface mount, making it suitable for use in compact and densely populated PCB designs.
• Package: The device is available in a tape and reel (TR) packaging, facilitating automated assembly processes.

VEC2415-TL-W Applications

The VEC2415-TL-W is ideal for use in a variety of applications where high efficiency and reliability are paramount. Some specific use cases include:

• Power Management: In power supply circuits, the VEC2415-TL-W can help manage power distribution with low on-resistance and high voltage tolerance.
• Automotive Electronics: Due to its high operating temperature and robust construction, the VEC2415-TL-W is well-suited for use in automotive applications, such as engine control units and battery management systems.
• Industrial Control Systems: In industrial settings, the VEC2415-TL-W can be used in motor control circuits and other high-voltage, high-current applications.

Conclusion of VEC2415-TL-W

The VEC2415-TL-W is a versatile MOSFET that offers a combination of high performance and reliability. Its unique features, such as a logic level gate, low on-resistance, and high voltage tolerance, make it an excellent choice for a wide range of applications. While it is now considered obsolete, its legacy of performance and quality remains a testament to onsemi's commitment to delivering high-quality electronic components.
