Panasonic

AN80T05LF

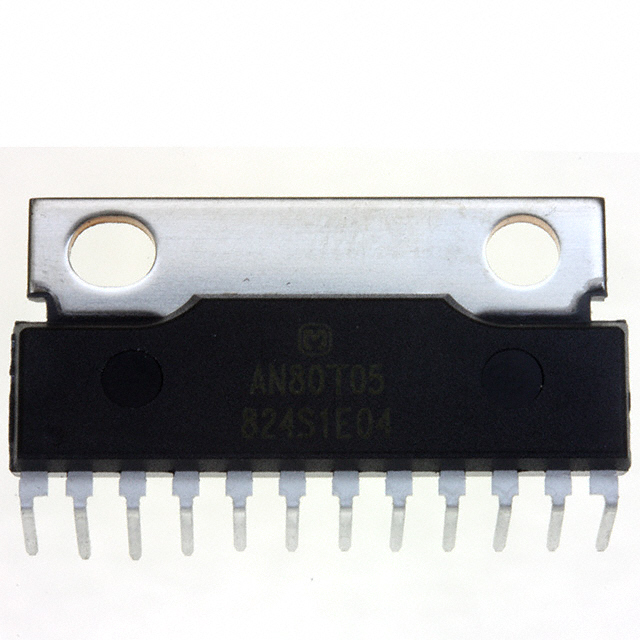

AN80T05LF Description

The AN80T05LF is a specialized voltage regulator designed for demanding applications such as converters and car audio systems. Manufactured by Panasonic Electronic Components, this regulator offers a robust and reliable solution for voltage regulation needs. The AN80T05LF is housed in a through-hole package, making it suitable for applications requiring a secure and stable mounting solution. This regulator is identified by the base product number AN80T05 and is available in a tube package format. Despite being marked as obsolete, the AN80T05LF remains a viable option for legacy systems and specific applications where its unique features are required.

AN80T05LF Features

The AN80T05LF boasts several key technical specifications that make it stand out in its category. It features a single output, providing regulated voltages of 5.6V, 8.7V, and 10V, making it versatile for various electronic systems. The input voltage range of 6.6V to 24V ensures compatibility with a wide array of power sources, enhancing its adaptability in different environments. The regulator is designed with a moisture sensitivity level (MSL) of 1, indicating unlimited storage and handling conditions, which is advantageous for long-term reliability and ease of integration.

AN80T05LF Applications

The AN80T05LF is particularly well-suited for applications in the automotive and audio industries. Its use in car audio systems ensures stable power supply, enhancing the performance and longevity of audio components. In converter applications, the regulator's ability to handle a wide input voltage range and provide precise output voltages makes it an ideal choice for maintaining consistent power levels. The through-hole mounting type ensures mechanical stability, which is crucial in environments where vibrations and mechanical stress are common, such as in automotive applications.

Conclusion of AN80T05LF

The AN80T05LF, despite being marked as obsolete, remains a valuable component for specific applications requiring its unique features. Its robust design, wide input voltage range, and precise output voltages make it a reliable choice for converters and car audio systems. The through-hole mounting and unlimited moisture sensitivity level further enhance its durability and ease of integration. For legacy systems and specialized applications, the AN80T05LF continues to offer a high-performance solution, ensuring stable and efficient voltage regulation.
