EXB-D6JP000A

EXB-D6JP000A Description

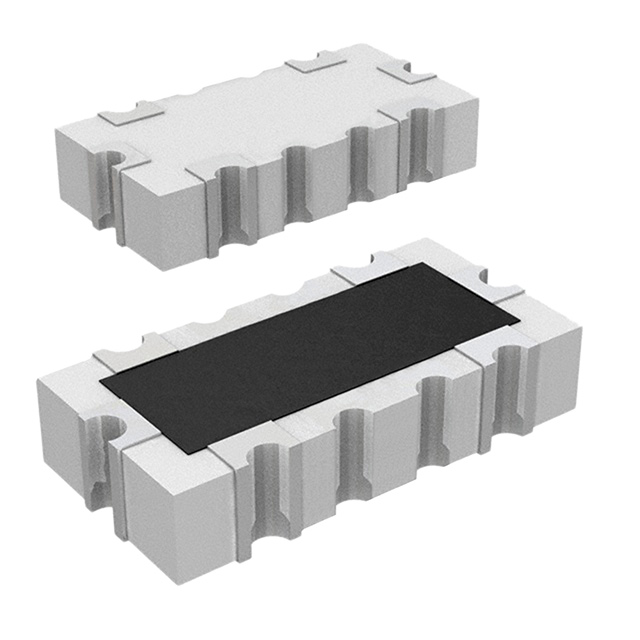

The EXB-D6JP000A from Panasonic Electronic Components is a high-performance zero-ohm resistor array designed for surface-mount applications. Housed in a compact 1206 (3216 Metric) concave package with long side terminals, this device features a 6-pin configuration and serves as a jumper or bridge in PCB designs. With dimensions of 3.20mm x 1.60mm (0.126" x 0.063") and a low-profile height of 0.70mm (0.028"), it is optimized for space-constrained layouts. The ROHS3-compliant and REACH-unaffected construction ensures environmental compliance, while its Moisture Sensitivity Level (MSL) 1 rating guarantees reliability in diverse operating conditions.

EXB-D6JP000A Features

• Zero-Ohm Jumper: Provides a low-resistance path (0.0Ω) for signal routing or bridging traces.
• Concave 1206 Package: Unique long-side terminal design enhances solder joint reliability and mechanical stability.
• High-Density Compatibility: Ideal for densely populated PCBs due to its compact footprint.
• Wide Operating Range: Suitable for industrial, automotive, and consumer electronics with unlimited shelf life (MSL 1).
• Tape & Reel Packaging: Facilitates automated assembly processes, improving manufacturing efficiency.

EXB-D6JP000A Applications

This resistor array excels in applications requiring signal routing, ground bridging, or circuit isolation, such as:

• Power Distribution Networks: Acts as a low-impedance link in power rails.
• PCB Debugging: Enables flexible circuit modifications during prototyping.
• Consumer Electronics: Used in smartphones, tablets, and wearables for space-saving interconnects.
• Automotive Systems: Reliable performance in infotainment and control modules.

Conclusion of EXB-D6JP000A

The EXB-D6JP000A stands out for its robust construction, precision engineering, and versatility in modern electronics. Its zero-ohm resistance, concave package, and compliance with environmental standards make it a superior choice for designers prioritizing reliability and efficiency. Whether for prototyping or mass production, this component delivers consistent performance in demanding applications.
