EXB-H5E105J

EXB-H5E105J Description

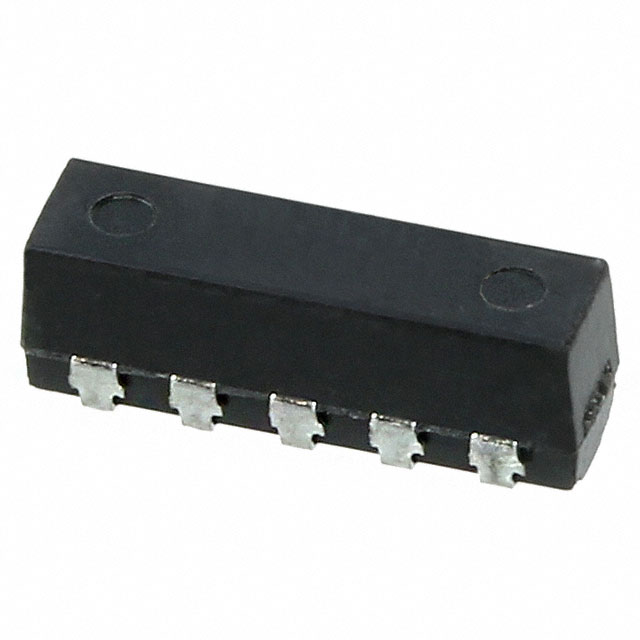

The EXB-H5E105J from Panasonic Electronic Components is a high-density 4-resistor bussed network designed for surface-mount applications. This obsolete but reliable component features a compact 5-pin SSIP (Single-Side In-Line Package) with dimensions of 7.08mm x 2.20mm (0.279" x 0.087") and a low-profile height of 2.69mm (0.106"), making it suitable for space-constrained PCB designs. Each resistor in the array has a 1MΩ resistance with a ±5% tolerance and a ±200ppm/°C temperature coefficient, ensuring stable performance across varying environmental conditions. The 62.5mW power rating per element and bussed circuit configuration simplify design integration while maintaining efficiency.

EXB-H5E105J Features

• Compact & Durable: Surface-mount design with a moisture sensitivity level (MSL) of 1 (Unlimited), ideal for automated assembly processes.
• Precision & Stability: ±5% tolerance and ±200ppm/°C TCR provide reliable performance in temperature-sensitive applications.
• Bussed Network: Simplifies circuit layout by connecting resistors in a common configuration, reducing component count.
• High-Density Packaging: 4 resistors in a 5-pin SSIP save board space compared to discrete resistors.
• Compliance: Meets ECCN EAR99 and HTSUS 8533.21.0020 standards for global compatibility.

EXB-H5E105J Applications

This resistor network is optimized for:

• Signal conditioning in analog/digital circuits.
• Voltage division in sensor interfaces and measurement systems.
• Pull-up/pull-down networks in microcontroller and logic circuits.
• Consumer electronics, where space efficiency and cost-effective resistor solutions are critical.
• Industrial control systems requiring stable resistance values under thermal stress.

Conclusion of EXB-H5E105J

The Panasonic EXB-H5E105J offers a balance of compactness, precision, and ease of integration, making it a practical choice for designs requiring multiple resistors in a single package. While marked as obsolete, its bussed configuration, low-profile form factor, and robust performance ensure continued suitability for legacy or low-volume production. Engineers seeking space-saving, high-reliability resistor networks for consumer or industrial applications may find this component a viable solution despite its discontinued status.
