EXB-H6E470J Description

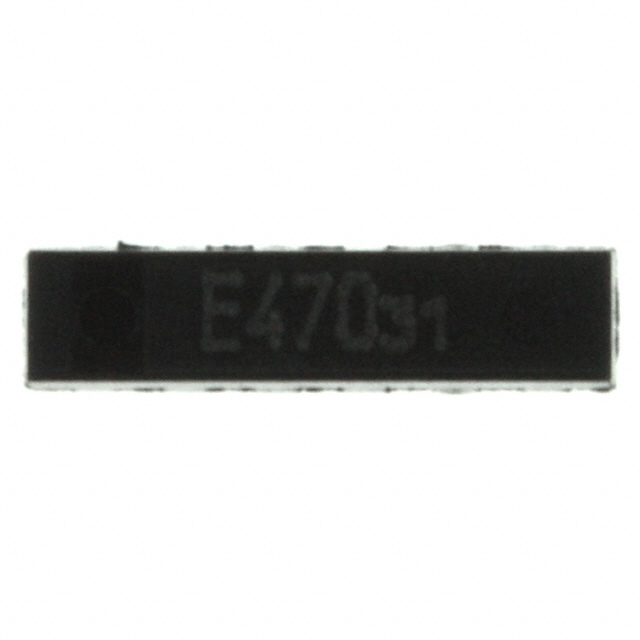

The EXB-H6E470J from Panasonic Electronic Components is a compact, surface-mount resistor network designed for high-density PCB applications. This 5-resistor bussed array integrates five 47Ω resistors with a ±5% tolerance and a ±200ppm/°C temperature coefficient, ensuring stable performance across varying environmental conditions. Encased in a 6-pin SSIP (Single-Side In-Line Package), it measures 8.35mm x 2.20mm (0.329" x 0.087") with a low-profile height of 2.69mm (0.106"), making it suitable for space-constrained designs. Rated at 62.5mW per element, this obsolete but reliable component is ideal for legacy or low-power circuits, offering a balance of precision and durability.

EXB-H6E470J Features

• Compact Design: Ultra-thin profile (2.69mm) and small footprint optimize board space.
• Bussed Circuit Configuration: Simplifies layout by connecting resistors in a common-node topology.
• Stable Performance: ±200ppm/°C temperature coefficient ensures minimal resistance drift.
• Surface-Mount Compatibility: Suitable for automated assembly processes, reducing manufacturing costs.
• Moisture-Resistant: MSL 1 (Unlimited) rating guarantees reliability in humid environments.
• Legacy Support: Ideal for maintaining or repairing older electronics where modern equivalents may not fit.

EXB-H6E470J Applications

This resistor array excels in applications requiring compact, multi-resistor solutions with moderate precision:

• Consumer Electronics: Voltage division, pull-up/pull-down networks in audio/video equipment.
• Industrial Controls: Signal conditioning and termination in PLCs and sensors.
• Automotive Systems: Low-power circuitry in dashboard displays or infotainment systems.
• Telecommunications: Impedance matching in RF modules or baseband processing.
• Legacy Device Maintenance: Repair or replacement of outdated PCB designs without redesign.

Conclusion of EXB-H6E470J

The EXB-H6E470J is a robust, space-efficient resistor network tailored for low-power, high-density applications. While obsolete, its bussed configuration, stable thermal performance, and Panasonic’s quality assurance make it a pragmatic choice for legacy systems or cost-sensitive projects. Engineers valuing reliability, compactness, and ease of integration will find this component a dependable solution for signal conditioning and circuit protection tasks.
