EXB-H6V102J

EXB-H6V102J Description

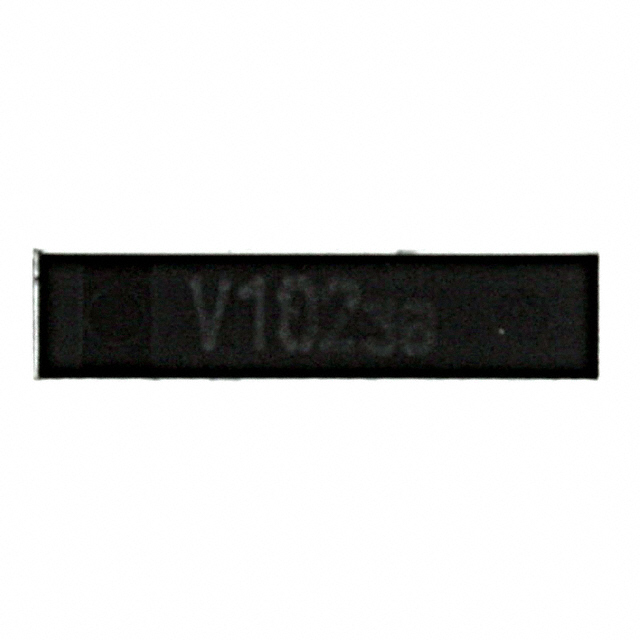

The EXB-H6V102J from Panasonic Electronic Components is a surface-mount resistor network designed for compact, high-density PCB applications. This obsolete but reliable component features three isolated 1kΩ resistors with a ±5% tolerance and a ±200ppm/°C temperature coefficient, ensuring stable performance across varying environmental conditions. Encased in a 6-pin SSIP (Single-In-Line Package), it measures 8.35mm x 2.20mm (0.329" x 0.087") with a low-profile height of 2.69mm (0.106"), making it suitable for space-constrained designs. Rated at 100mW per element, it complies with ECCN EAR99 and HTSUS 8533.21.0020, and is supplied in cut tape (CT) packaging with MSL 1 (Unlimited) moisture sensitivity.

EXB-H6V102J Features

• Compact Design: Small footprint (8.35mm x 2.20mm) and low height (2.69mm) ideal for miniaturized electronics.
• Stable Performance: ±200ppm/°C temperature coefficient ensures reliability under thermal stress.
• Isolated Circuitry: Three independent 1kΩ resistors allow flexible circuit configurations.
• High Power Handling: 100mW power rating per resistor for robust operation.
• Easy Integration: Surface-mount (SMD) design simplifies assembly in automated PCB production.
• Broad Compliance: Meets EAR99 and HTSUS standards for global usability.

EXB-H6V102J Applications

The EXB-H6V102J excels in applications requiring precision resistance networks with minimal board space, such as:

• Consumer Electronics: Used in smartphones, tablets, and wearables for signal conditioning.
• Industrial Controls: Ideal for sensor interfaces, PLCs, and automation systems.
• Telecommunications: Employed in filtering and impedance matching circuits.
• Medical Devices: Suitable for portable diagnostic equipment due to its compact size and reliability.
• Automotive Electronics: Functions in infotainment and control modules where space efficiency is critical.

Conclusion of EXB-H6V102J

While marked as obsolete, the EXB-H6V102J remains a viable choice for legacy designs or applications demanding a proven, compact resistor network. Its isolated resistors, stable thermal performance, and SMD compatibility make it a versatile solution for high-density PCBs. Engineers seeking alternatives should verify availability, but for existing projects, this Panasonic component delivers consistent performance in space-sensitive and thermally variable environments.
