EXB-H6V103J

EXB-H6V103J Description

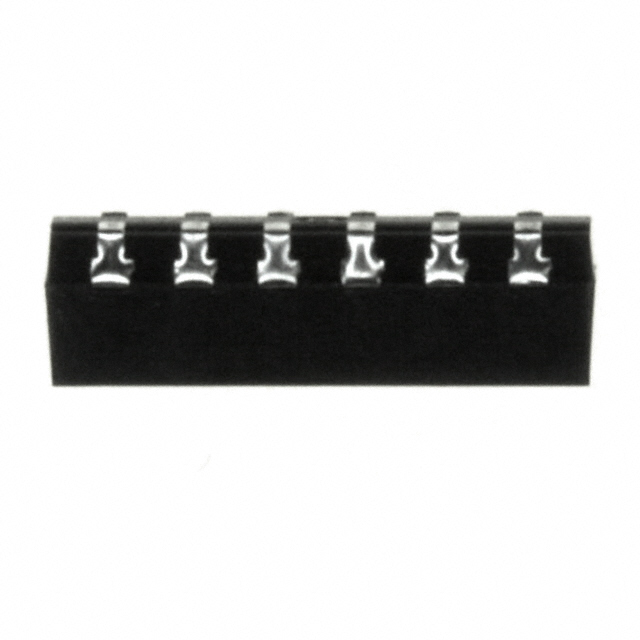

The EXB-H6V103J from Panasonic Electronic Components is a compact, surface-mount resistor network designed for high-density PCB applications. This obsolete but reliable component features three isolated 10kΩ resistors with a ±5% tolerance and a ±200ppm/°C temperature coefficient, ensuring stable performance across varying environmental conditions. Encased in a 6-pin SSIP package with dimensions of 8.35mm x 2.20mm (0.329" x 0.087") and a seated height of 2.69mm (0.106"), it offers space efficiency without compromising functionality. Rated at 100mW per element, the EXB-H6V103J is ideal for low-power circuits, with a moisture sensitivity level (MSL) of 1 (Unlimited), making it suitable for extended storage and handling.

EXB-H6V103J Features

• Compact Design: Ultra-thin profile (2.69mm max height) and small footprint optimize board space.
• High Reliability: ±5% tolerance and ±200ppm/°C TCR ensure consistent performance in industrial environments.
• Isolated Circuit Configuration: Three independent resistors reduce crosstalk, ideal for precision analog/digital circuits.
• Surface-Mount Compatibility: 6-pin SSIP package simplifies automated assembly processes.
• Low Power Handling: 100mW per resistor suits energy-efficient designs.
• Robust Storage: MSL 1 rating allows unrestricted shelf life and handling flexibility.

EXB-H6V103J Applications

The EXB-H6V103J excels in applications requiring space-saving, stable resistance networks, such as:

• Voltage Division: Precision dividers in sensor interfaces or ADC circuits.
• Pull-Up/Pull-Down Networks: Digital logic circuits (e.g., microcontrollers, FPGAs).
• Signal Conditioning: Analog filtering or impedance matching in communication systems.
• Consumer Electronics: Compact devices like wearables, IoT modules, and portable gadgets.
• Industrial Controls: PLCs and automation systems where isolation between resistors is critical.

Conclusion of EXB-H6V103J

While marked as obsolete, the EXB-H6V103J remains a viable choice for designers seeking a cost-effective, space-optimized resistor array with proven performance. Its isolated design, tight tolerance, and robust construction make it a dependable option for legacy or low-volume production runs. For applications demanding miniaturization and reliability, this Panasonic component delivers a balanced blend of precision and practicality.
