EXB-H6V104J

EXB-H6V104J Description

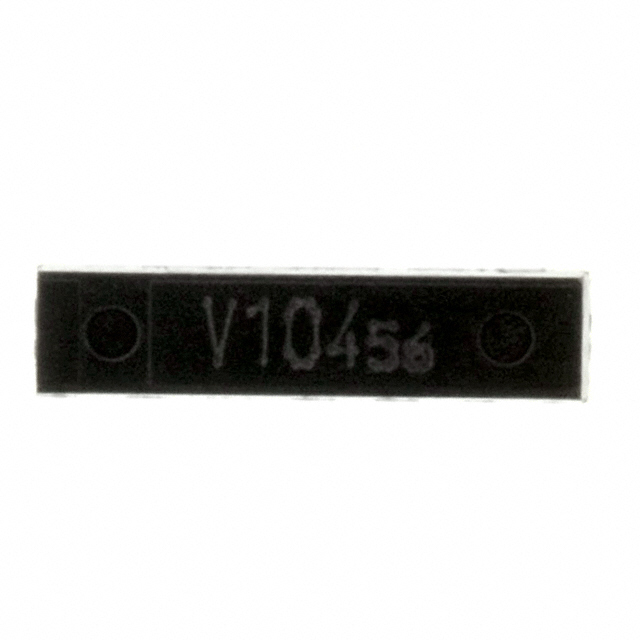

The EXB-H6V104J by Panasonic Electronic Components is a compact, surface-mount resistor network designed for high-density PCB applications. This obsolete but reliable model belongs to the EXB series, featuring three isolated 100kΩ resistors with a ±5% tolerance and ±200ppm/°C temperature coefficient. Encased in a 6-pin SSIP (Single-In-Line Package), it measures 8.35mm x 2.20mm (0.329" x 0.087") with a low-profile height of 2.69mm (0.106"), making it suitable for space-constrained designs. Rated at 100mW per element, it operates within industrial temperature ranges and complies with ECCN EAR99 and HTSUS 8533.21.0020. Packaged in Cut Tape (CT) with MSL 1 (Unlimited) moisture sensitivity, it ensures ease of handling and assembly.

EXB-H6V104J Features

• High-Density Integration: Combines three 100kΩ resistors in a single 6-pin package, reducing PCB footprint.
• Stable Performance: ±200ppm/°C temperature coefficient ensures reliability across varying thermal conditions.
• Industrial-Grade Tolerance: ±5% resistance tolerance for consistent performance in precision circuits.
• Low-Profile Design: 2.69mm seated height ideal for slim or stacked PCB configurations.
• Surface-Mount Compatibility: Facilitates automated assembly processes, lowering production costs.
• Moisture-Resistant: MSL 1 rating allows unlimited floor life prior to reflow, minimizing storage constraints.

EXB-H6V104J Applications

This resistor network excels in applications requiring signal conditioning, voltage division, or pull-up/down tasks, such as:

• Consumer Electronics: Used in smart devices, wearables, and IoT modules for compact circuit design.
• Industrial Control Systems: Provides stable resistance in PLCs, sensors, and motor drivers.
• Automotive Electronics: Suitable for non-critical ECU circuits due to its robust temperature performance.
• Telecommunication Equipment: Ideal for filtering and impedance matching in RF modules.

Conclusion of EXB-H6V104J

The EXB-H6V104J offers a balance of miniaturization, reliability, and cost-efficiency, making it a pragmatic choice for legacy or low-complexity designs. While obsolete, its isolated resistor configuration and Panasonic’s quality assurance ensure dependable performance in space-sensitive applications. Engineers seeking a proven, no-frills solution for passive circuit integration will find this model a viable option despite its discontinued status.
