EXB-H6V151J

EXB-H6V151J Description

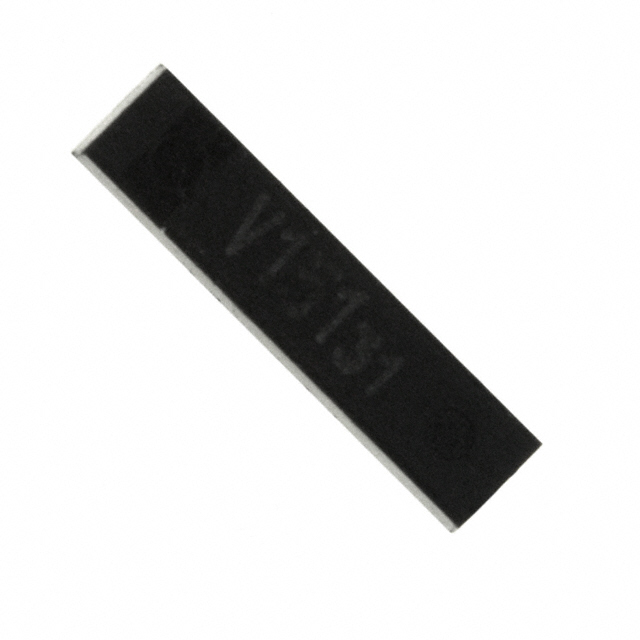

The EXB-H6V151J from Panasonic Electronic Components is a high-performance surface-mount resistor network designed for precision applications. This obsolete model, part of the EXB series, features three isolated 150Ω resistors with a ±5% tolerance and a ±200ppm/°C temperature coefficient, ensuring stable performance across varying environmental conditions. Encased in a compact 6-pin SSIP (Single In-Line Package) with dimensions of 8.35mm x 2.20mm (0.329" x 0.087") and a seated height of 2.69mm (0.106"), it is optimized for space-constrained PCB designs. Rated at 100mW per element, this resistor network is ideal for low-power circuits requiring reliable resistance matching.

EXB-H6V151J Features

• Compact Design: Small footprint (8.35mm x 2.20mm) and low profile (2.69mm) for high-density PCB layouts.
• Stable Performance: ±200ppm/°C temperature coefficient ensures minimal resistance drift.
• Isolated Circuitry: Three independent 150Ω resistors for flexible circuit design.
• Surface-Mount Compatibility: Easy integration with automated assembly processes.
• Moisture Resistant: MSL 1 (Unlimited) rating allows extended storage without degradation.
• Industry Compliance: Meets ECCN EAR99 and HTSUS 8533.21.0020 standards for global use.

EXB-H6V151J Applications

The EXB-H6V151J excels in applications requiring precise resistance matching and compact form factors, such as:

• Voltage Division Circuits: Used in sensor interfaces and signal conditioning.
• Pull-Up/Pull-Down Networks: Ensures stable logic levels in digital systems.
• Consumer Electronics: Ideal for compact devices like wearables and IoT modules.
• Industrial Controls: Reliable performance in harsh environments due to robust construction.
• Automotive Electronics: Suitable for non-critical low-power circuits in infotainment or lighting systems.

Conclusion of EXB-H6V151J

While marked as obsolete, the EXB-H6V151J remains a viable choice for legacy designs or applications demanding matched resistance values, compact sizing, and surface-mount convenience. Its low power dissipation, stable thermal performance, and isolation make it a dependable component for prototyping and low-volume production. Engineers seeking alternatives should consider newer Panasonic offerings with similar specifications but enhanced availability.
