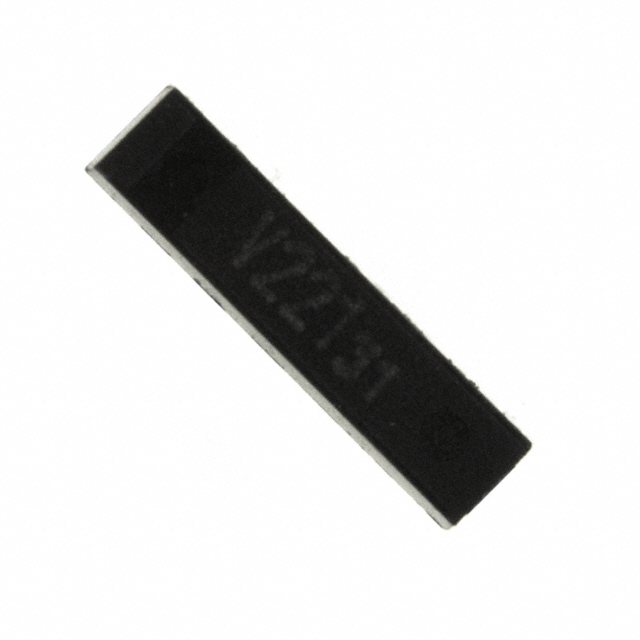

EXB-H6V221J

EXB-H6V221J Description

The EXB-H6V221J from Panasonic Electronic Components is a surface-mount resistor network designed for compact, high-density PCB applications. This obsolete model features three isolated 220Ω resistors with a ±5% tolerance and ±200ppm/°C temperature coefficient, ensuring stable performance across varying environmental conditions. Encased in a 6-pin SSIP (Single-Side In-Line Package), it measures 8.35mm x 2.20mm (0.329" x 0.087") with a low-profile height of 2.69mm (0.106"), making it suitable for space-constrained designs. Rated at 100mW per element, it balances power handling with miniaturization. The EAR99/ECCN classification and MSL 1 (Unlimited) moisture sensitivity ensure compliance with global standards for industrial and consumer electronics.

EXB-H6V221J Features

• Compact Design: Ultra-thin profile (2.69mm) and small footprint optimize board space.
• Stable Performance: ±200ppm/°C temperature coefficient minimizes resistance drift.
• Isolated Circuit Configuration: Independent resistors reduce crosstalk in multi-channel applications.
• Robust Construction: Surface-mount technology (SMT) compatible for automated assembly.
• Wide Compatibility: Suitable for 5% tolerance designs, balancing cost and precision.

EXB-H6V221J Applications

Ideal for signal conditioning, voltage division, and pull-up/down circuits, the EXB-H6V221J excels in:

• Consumer Electronics: TVs, audio equipment, and IoT devices requiring compact resistor networks.
• Industrial Controls: PLCs, sensor interfaces, and power management systems.
• Automotive Electronics: Non-critical circuits where space and reliability are prioritized.
• Telecommunications: Filtering and impedance matching in RF modules.

Conclusion of EXB-H6V221J

The EXB-H6V221J offers a cost-effective, space-saving solution for applications demanding multiple resistors in a single package. While obsolete, its Panasonic-grade reliability, isolation between resistors, and SMT compatibility make it a viable choice for legacy designs or inventory-based projects. Engineers should evaluate alternatives for new designs but can leverage this model for repairs or low-volume production where its specifications align.
