EXB-H6V472J

EXB-H6V472J Description

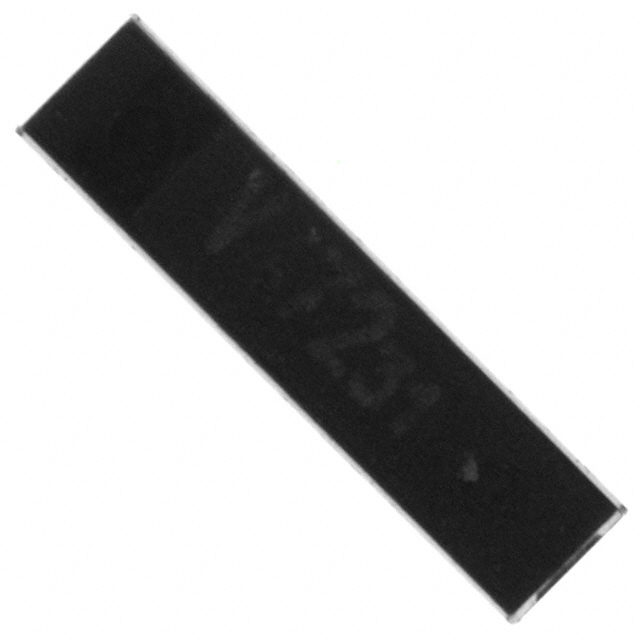

The EXB-H6V472J from Panasonic Electronic Components is a surface-mount resistor network designed for compact, high-density PCB applications. This obsolete but reliable component features three isolated 4.7kΩ resistors with a ±5% tolerance and a ±200ppm/°C temperature coefficient, ensuring stable performance across varying environmental conditions. Encased in a 6-pin SSIP (Single In-Line Package), it measures 8.35mm x 2.20mm (0.329" x 0.087") with a low-profile height of 2.69mm (0.106"), making it suitable for space-constrained designs. Rated at 100mW per resistor, it adheres to EAR99 ECCN and HTSUS 8533.21.0020 classifications, with MSL 1 (Unlimited) moisture sensitivity for easy handling.

EXB-H6V472J Features

• Compact Design: Ultra-thin profile (2.69mm) and small footprint optimize board space.
• High Reliability: ±5% tolerance and ±200ppm/°C TCR ensure consistent performance in industrial environments.
• Isolated Circuitry: Three independent 4.7kΩ resistors reduce crosstalk, ideal for precision signal division.
• Surface-Mount Ready: Compatible with automated assembly processes, reducing manufacturing costs.
• Robust Packaging: Supplied in cut tape (CT) for efficient reel-to-reel processing.

EXB-H6V472J Applications

This resistor network excels in applications requiring stable, low-power resistance with minimal footprint, such as:

• Voltage Dividers: Precision signal conditioning in sensor interfaces.
• Pull-Up/Pull-Down Networks: Digital logic circuits in consumer electronics.
• Industrial Control Systems: Isolated resistor arrays for PLCs and motor drives.
• Legacy Equipment Repairs: Suitable for servicing older Panasonic-based systems.

Conclusion of EXB-H6V472J

While marked obsolete, the EXB-H6V472J remains a viable choice for designers needing a compact, isolated resistor network with proven performance. Its low-profile, high-reliability design makes it ideal for retrofits or space-sensitive analog circuits. Engineers should evaluate alternative modern equivalents for new designs but can leverage this component’s cost-effective, standardized form factor for legacy or niche applications.
