EXB-H8E153J

EXB-H8E153J Description

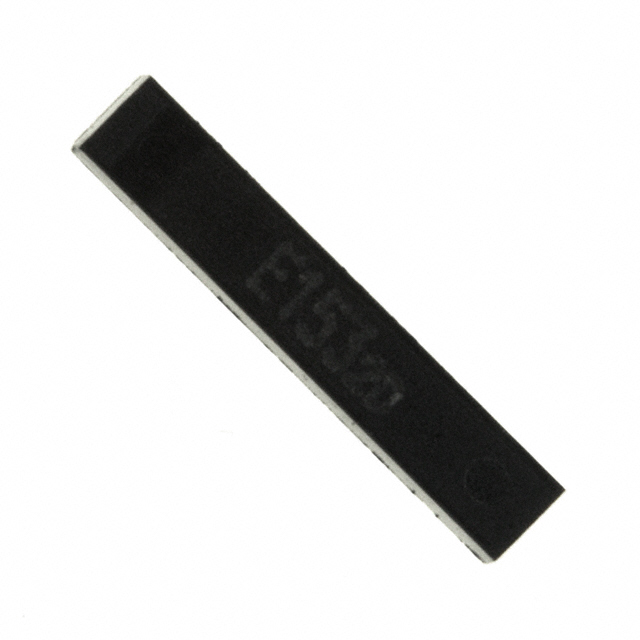

The EXB-H8E153J from Panasonic Electronic Components is a high-density 7-resistor bussed network designed for surface-mount applications. This obsolete but reliable component features a compact 8-pin SSIP (Single-In-Line Package) with dimensions of 0.429" x 0.087" (10.89mm x 2.20mm) and a low-profile height of 0.106" (2.69mm), making it suitable for space-constrained PCB designs. Each resistor in the array has a 15kΩ resistance with a ±5% tolerance and a ±200ppm/°C temperature coefficient, ensuring stable performance across varying environmental conditions. The 62.5mW power rating per element and bussed circuit configuration simplify design integration while reducing component count.

EXB-H8E153J Features

• 7-resistor bussed network in an 8-pin SSIP package for efficient PCB layout.
• Compact footprint: 10.89mm x 2.20mm with a low 2.69mm profile.
• 15kΩ ±5% tolerance resistors with ±200ppm/°C thermal stability.
• 62.5mW power dissipation per resistor, ideal for low-power applications.
• Surface-mount (SMD) design for automated assembly compatibility.
• Moisture Sensitivity Level (MSL) 1 (Unlimited), ensuring robustness in storage and handling.
• EAR99 / HTSUS 8533.21.0020 compliant for broad industrial use.

EXB-H8E153J Applications

This resistor network excels in signal conditioning, pull-up/pull-down circuits, and voltage division in:

• Consumer electronics: Set-top boxes, audio/video equipment.
• Industrial controls: PLCs, sensor interfaces, and instrumentation.
• Telecommunications: Line termination and impedance matching.
• Automotive electronics: Infotainment and control modules (where ±5% tolerance suffices).
  Its bussed configuration reduces wiring complexity, while the low thermal drift ensures reliability in temperature-varying environments.

Conclusion of EXB-H8E153J

The Panasonic EXB-H8E153J offers a cost-effective, space-saving solution for multi-resistor applications requiring consistent performance. While obsolete, its compact design, stable thermal characteristics, and ease of integration make it a pragmatic choice for legacy designs or replacements. Engineers valuing simplified BOMs and proven reliability will find this array ideal for low-power, high-density PCB layouts.
