EXB-H8V105J

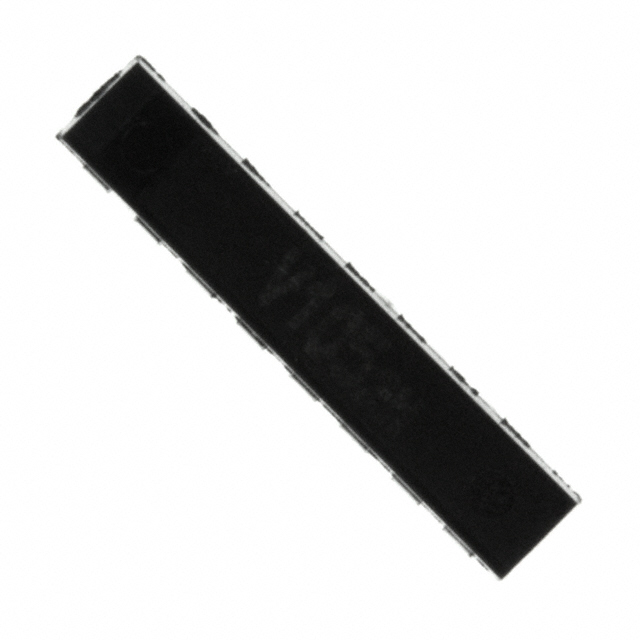

EXB-H8V105J Description

The EXB-H8V105J by Panasonic Electronic Components is a high-density surface-mount resistor network designed for precision applications in compact electronic assemblies. This obsolete model from the EXB series integrates four isolated 1MΩ resistors with a ±5% tolerance and a ±200ppm/°C temperature coefficient, ensuring stable performance across varying environmental conditions. Encased in an 8-pin SSIP package, it features a slim profile with a seated height of 2.69mm (0.106") and compact dimensions of 10.89mm x 2.20mm (0.429" x 0.087"), making it ideal for space-constrained designs. Rated at 100mW per element, it balances power handling with minimal footprint. Compliant with ECCN EAR99 and HTSUS 8533.21.0020, it is packaged in cut tape (CT) for automated assembly and carries an MSL 1 (Unlimited) moisture sensitivity rating.

EXB-H8V105J Features

• High-Density Integration: Four 1MΩ resistors in a single 8-pin package reduce board space and simplify routing.
• Stable Performance: ±200ppm/°C temperature coefficient and ±5% tolerance ensure reliability in fluctuating thermal environments.
• Compact Form Factor: Ultra-thin 2.69mm profile and 10.89mm x 2.20mm footprint suit high-density PCBs.
• Surface-Mount Design: Facilitates automated assembly processes, improving manufacturing efficiency.
• Low-Power Handling: 100mW per resistor balances energy efficiency with signal integrity.
• Obsolete Status: While no longer in production, remaining stock is suitable for legacy system maintenance or low-volume prototypes.

EXB-H8V105J Applications

• Signal Conditioning: Precision voltage division in sensor interfaces or ADC/DAC circuits.
• Pull-Up/Pull-Down Networks: Stable biasing for microcontrollers and digital logic ICs.
• Industrial Controls: Robust performance in PLCs, motor drives, and instrumentation.
• Consumer Electronics: Space-saving solution for audio equipment, displays, and power management modules.
• Legacy System Repairs: Ideal for servicing older Panasonic-based designs requiring exact replacements.

Conclusion of EXB-H8V105J

The EXB-H8V105J resistor network excels in applications demanding miniaturization, thermal stability, and simplified PCB layout. Its isolated 1MΩ resistors and surface-mount compatibility make it a pragmatic choice for both legacy and niche designs. While obsolete, its low moisture sensitivity and tape packaging ensure usability in existing inventories. Engineers should consider this model for retrofit projects or scenarios where standardized resistance values and compact integration are critical. For new designs, exploring active Panasonic alternatives with similar specifications is recommended.
