MPC9865VMR2

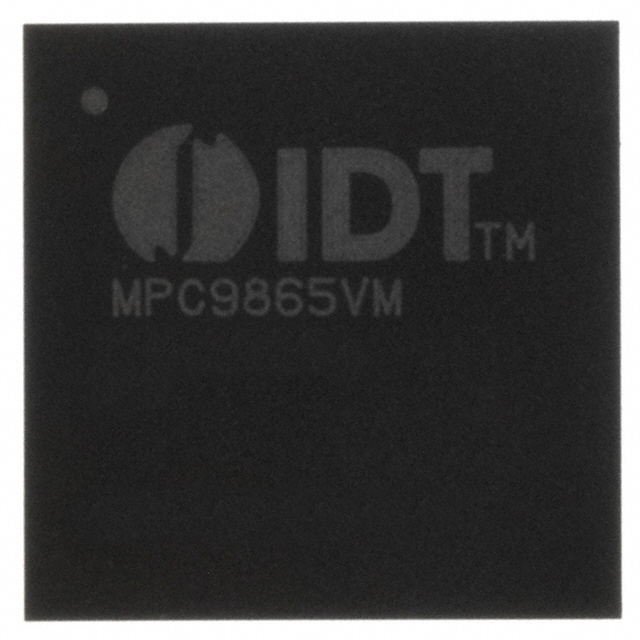

MPC9865VMR2 Description

The MPC9865VMR2 is a high-performance PLL clock generator designed for networking, PowerQUICC III, and telecom applications. Manufactured by Renesas Electronics Corporation, this Application Specific Clock/Timing IC is known for its robust performance and versatile functionality. The device features a 3:10 input-to-output ratio, supporting a wide range of clock frequencies and configurations. It is designed for surface-mount applications and is available in a Tape & Reel (TR) package, making it suitable for automated assembly processes.

MPC9865VMR2 Features

• Main Purpose: Networking, PowerQUICC III, Telecom
• PLL: Yes, ensuring precise clock generation and synchronization.
• Input Types: LVCMOS, LVPECL, Crystal, providing flexibility in input signal types.
• Output Type: LVCMOS, compatible with a wide range of digital circuits.
• Frequency - Max: 200MHz, suitable for high-speed applications.
• Voltage - Supply: 3.135V ~ 3.465V, ensuring stable operation within a specific voltage range.
• Differential - Input:Output: Yes/No, offering both differential and single-ended signal options.
• Number of Circuits: 1, focused on delivering a single, high-quality clock signal.
• Moisture Sensitivity Level (MSL): 3 (168 Hours), indicating its suitability for various environmental conditions.
• Package: Tape & Reel (TR), ideal for automated assembly and bulk handling.
• Product Status: Obsolete, though still valuable for legacy systems and specific applications.

MPC9865VMR2 Applications

The MPC9865VMR2 is ideal for applications requiring precise clock generation and synchronization, particularly in the networking and telecom sectors. Its ability to handle both differential and single-ended signals, along with its wide input-to-output ratio, makes it suitable for a variety of systems, including:

• Networking Equipment: Ideal for routers, switches, and other networking devices that require reliable clock signals.
• Telecom Systems: Suitable for telecom infrastructure where precise timing is crucial.
• PowerQUICC III Applications: Specifically designed to support PowerQUICC III processors, enhancing overall system performance.
• High-Speed Digital Systems: Given its 200MHz maximum frequency, it is well-suited for high-speed digital circuits.

Conclusion of MPC9865VMR2

The MPC9865VMR2 stands out as a reliable and versatile PLL clock generator, offering precise clock generation and synchronization for various applications. Its support for multiple input types, differential signaling options, and compatibility with PowerQUICC III processors make it a valuable component in networking and telecom systems. Despite its obsolete status, the MPC9865VMR2 remains a robust choice for legacy systems and specific applications where its unique features and performance benefits are essential.
