RAA211450GNP#HA0

RAA211450GNP#HA0 Description

The RAA211450GNP#HA0 is a high-performance DC switching voltage regulator designed by Renesas Electronics Corporation. This IC regulator features an adjustable output type, providing a wide range of voltage and current capabilities. It supports an input voltage range from 4.5V to 42V and can deliver a maximum output current of 5A. The regulator is designed with a positive output configuration and offers an adjustable output voltage from 0.8V to 37.8V, making it highly versatile for various applications.

The RAA211450GNP#HA0 employs a buck topology and operates at a switching frequency of 400kHz, with a variable range from 200kHz to 800kHz. This wide frequency range allows for optimized performance in different operating conditions. The regulator also includes a synchronous rectifier, enhancing efficiency and reducing power loss.

RAA211450GNP#HA0 Features

• Adjustable Output Voltage: The regulator can adjust the output voltage from 0.8V to 37.8V, providing flexibility for a variety of applications.
• Wide Input Voltage Range: With an input voltage range of 4.5V to 42V, the RAA211450GNP#HA0 can accommodate a broad spectrum of power sources.
• High Output Current: Capable of delivering up to 5A of output current, this regulator is suitable for high-power applications.
• Efficient Buck Topology: Utilizing a buck topology, the regulator ensures high efficiency and low power consumption.
• Synchronous Rectification: The inclusion of a synchronous rectifier enhances overall efficiency and reduces heat generation.
• Flexible Switching Frequency: The regulator operates at a base frequency of 400kHz, with a variable range from 200kHz to 800kHz, allowing for optimized performance in different scenarios.

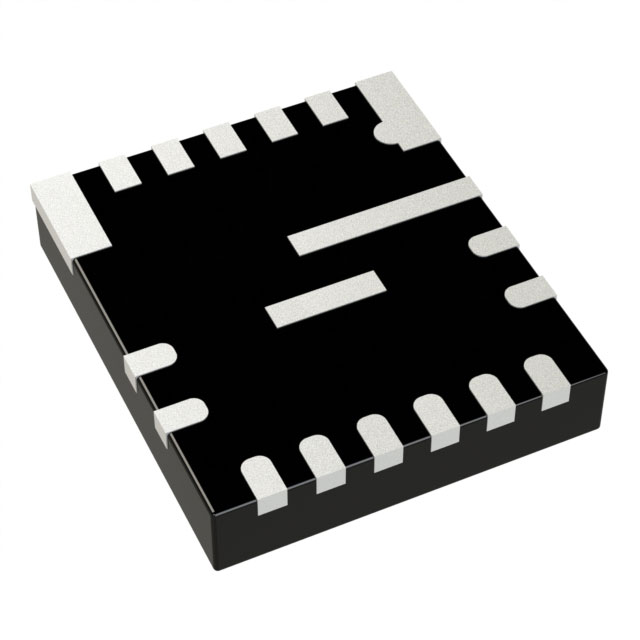

• Compliance and Packaging: The RAA211450GNP#HA0 is REACH unaffected and RoHS3 compliant, ensuring environmental safety. It is packaged in a surface-mount 20QFN format, making it suitable for compact designs.

RAA211450GNP#HA0 Applications

The RAA211450GNP#HA0 is ideal for applications requiring high efficiency and adjustable voltage regulation. Its wide input and output voltage ranges make it suitable for a variety of power supply applications, including:

• Industrial Equipment: Providing stable power to industrial control systems and automation devices.
• Telecommunications: Ensuring reliable power supply for telecom infrastructure and networking equipment.
• Consumer Electronics: Ideal for powering high-current devices such as gaming consoles and high-end audio systems.
• Automotive Systems: Suitable for automotive electronics where wide input voltage ranges and high efficiency are critical.

Conclusion of RAA211450GNP#HA0

The RAA211450GNP#HA0 is a versatile and efficient DC switching voltage regulator that stands out in its category due to its wide input and output voltage ranges, high output current capability, and flexible switching frequency. Its synchronous rectification and buck topology ensure high efficiency and reduced power loss, making it an excellent choice for applications requiring reliable and adjustable power regulation. The compliance with REACH and RoHS3 standards further enhances its suitability for modern, environmentally conscious designs.
